How to Properly Select, Install and Maintain Outdoor LED Displays?

Submitted by topadmin on

The installation of outdoor LED displays is a systematic project involving steel structure mechanics, electrical engineering, lightning protection, waterproofing, and optoelectronic commissioning. From preliminary survey to final power-on, the entire process is divided into five core stages:

I. Pre-installation Preparation and Site Survey

1. Environmental and Site Survey Load-bearing Structure Inspection: Verify that the mounting wall or steel structure can support the total weight of the screen (outdoor LED large screens with frames typically weigh 40–80 kg/m²). Wind Load and Seismic Resistance Assessment: Outdoor high-altitude locations experience strong wind pressure.

2. The stress on the steel structure must be calculated based on the local maximum wind force (e.g., compliance with standards for resisting typhoons above Grade 10). Line of Sight and Lighting Environment: Calculate the optimal viewing distance and angle, evaluate the impact of direct strong afternoon sunlight, and select screens with high brightness (usually ≥5500 cd/m²) and automatic light sensing adjustment function.

3. Formal Approval and Compliance Apply to local urban management, housing construction and planning authorities for approval to install outdoor billboards/large screens. Ensure compliance with local nighttime light pollution control standards (brightness limits and screen-off hours).

II. Foundation Construction and Main Frame Erection

[Infrastructure / Wall Embedding] ─ [Steel Structure Welding and Anti-corrosion Treatment] ─ [Cabinet Mounting / Assembly] ─ [Power Distribution and Cabling] ─[Module Power-on and Commissioning]

Installation Type
Core Construction Requirements
Precautions
Wall Embedded / Wall-mounted
The main keel shall be fixed with chemical anchor bolts or through bolts, and the grid spacing of channel steel / square steel shall precisely match the cabinet dimensions.
Reserve a rear maintenance access of at least 60–80 cm (unless front-serviceable modules are adopted).

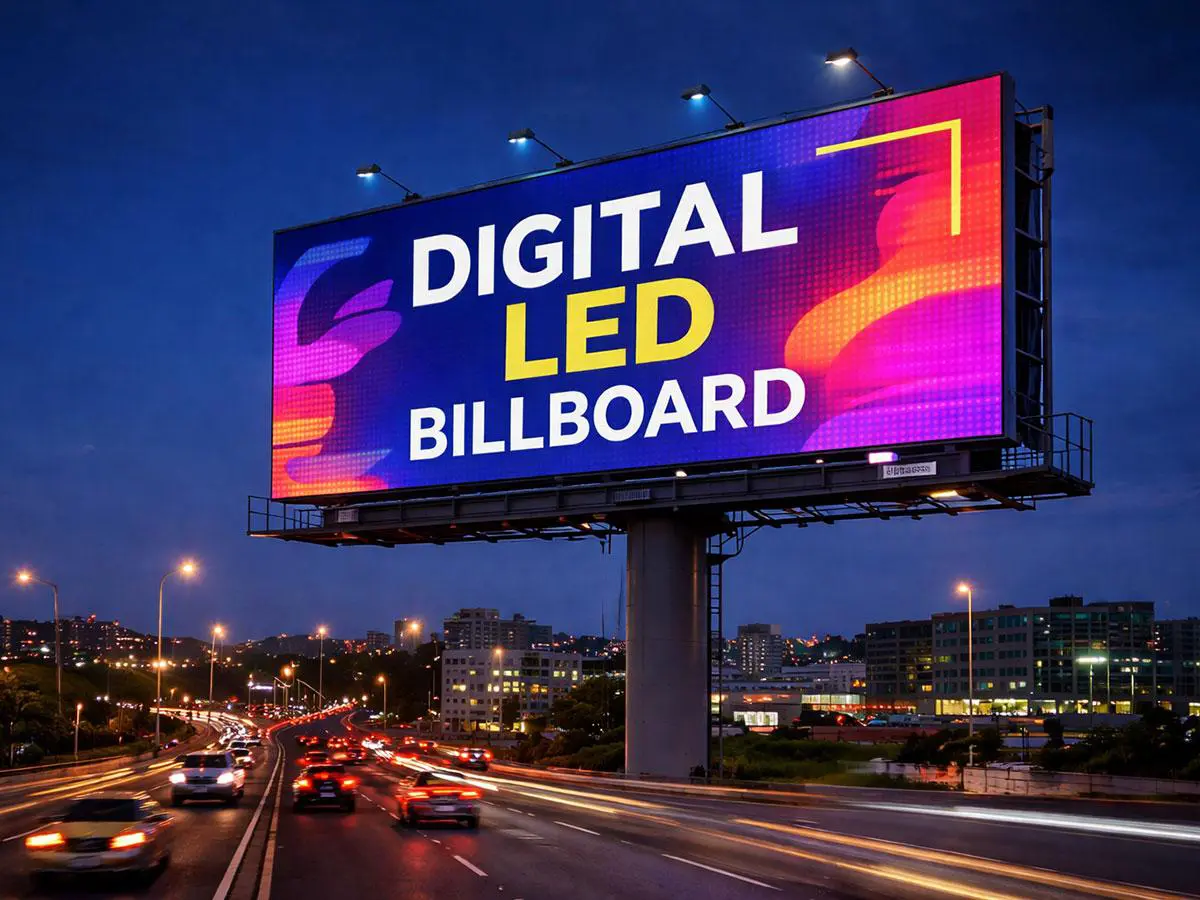

Pole-mounted Type (Single/Double Pole)
Excavate an independent foundation pit, pour reinforced concrete foundation, embed anchor bolt flange plates, and allow curing for a full 28 days.
It shall withstand gusts of Grade 10–12.
Rooftop-mounted Type
The steel beams shall be welded or anchored to the load-bearing columns/shear walls of the building. Anti-rust heavy-duty anti-corrosion painting shall be applied after welding is completed.
Strictly avoid damaging the original roof waterproof membrane of the building.
Swipe left or right to view more content


1. Steel Structure Fabrication Material Selection: National standard galvanized square steel or H-beam is recommended. Anti-rust paint and topcoat must be applied to cut surfaces and welding joints. Lightning Protection and Earthing: The main steel structure shall be reliably connected to the building lightning protection network, with a grounding resistance below 4Ω.

2. Screen Fixation and Protection Cabinet Installation: Secure standardized cabinets (such as waterproof lightweight cabinets or standard waterproof cabinets) one by one to the steel frame using high-strength bolts, ensuring the overall flatness error does not exceed 1 mm. Waterproof and Dustproof (Protection Class IP65+): Outdoor anti-aging silicone sealant shall be used to seal gaps between cabinets. Waterproof doors and rain eaves shall be installed for rear maintenance access or equipment rooms.

III. Strong & Weak Current System and Signal Deployment

1. Fix bottom row and reference cabinets: The flatness reference is critical. Use a laser level to calibrate horizontal and vertical reference lines. Hoist or place the first row of cabinets starting from the middle or one side at the bottom, and fasten them with connecting plates and high-strength bolts.

2. Assemble cabinets layer by layer upwards: Stack cabinets layer by layer and align them with locating pins. Strictly control the tolerance of seams between cabinets (gap ≤0.5 mm) to ensure overall screen flatness without step differences.

3. Connection of high-voltage power distribution system: Live working is strictly prohibited. Run three-phase five-wire cables from the power distribution cabinet (equipped with lightning protectors, time control switches and PLC step delay power-on devices), and distribute three-phase loads evenly to cabinet power supplies by zones.

4. Series connection of low-voltage signal links: Connect sending cards, photoelectric converters and receiving cards of each cabinet in a daisy-chain "primary-secondary loop" via Gigabit Ethernet cables or optical fibers according to the topology diagram (dual backup redundant links are recommended).

IV. Heat Dissipation and Environmental Adaptability Treatment

1. Heat Dissipation System Design Forced Air Cooling / Air Conditioning: Axial fans (air intake at the bottom, exhaust at the top) or industrial wall-mounted air conditioners shall be installed inside enclosed cabinets to keep the internal temperature below 40°C. Reference calculation formula: Approximately 1 HP of cooling capacity is required for every 10 m² of screen area (adjust according to actual power consumption and ambient temperature).

2. Moisture and Salt Spray Resistance In coastal or rainy regions, PCBs must be coated with three-proof paint (moisture-proof, salt-spray resistant, mildew-proof), and cabinets shall adopt anti-corrosion materials.

V. Commissioning, Power-on and Maintenance Management

1. Pre-power-on Inspection Check the integrity of grounding, cable routing, insulation resistance, cabinet sealing and fastener tightening. Confirm no short circuit inside power distribution loops. Complete lightning protection continuity test and record the grounding resistance value.

2. Step-by-step Power-on and System Commissioning Implement staged power-on through PLC delay control to avoid instantaneous inrush current. Conduct point-by-point lighting test for modules, calibrate display color, brightness and gray scale, debug sending/receiving card parameters, and test redundant switching of dual signal links.

3. Acceptance Test Items Include overall flatness, seam gap, waterproof performance, temperature operation range, lightning protection earthing, image synchronization, fault alarm function and remote monitoring function.

4. Daily & Periodic Maintenance Management

  • Daily: Check screen display status, abnormal noise and condensate inside cabinets via remote monitoring.
  • Quarterly: Inspect fan/air conditioner operation, silicone sealing, cable aging and rust conditions of steel structures.
  • Annual: Retest grounding resistance, recoat anti-corrosion paint as required, replace aging fans, power supplies and signal cables. Set up emergency response plans for lightning, heavy rain and extreme high temperature.
