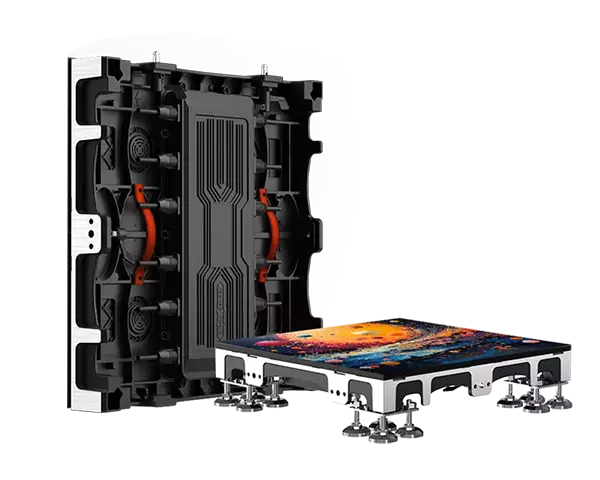

Indoor KD PLUS

Indoor Video Floor KD PLUS

KD-PLUS series for indoor LED video floor, available for full front maintenance, including module, power supply, and receiving card. Available for both DOB and MASK solutions.More functions, be led floor, led wall, and rental applications. available for XR solutions.

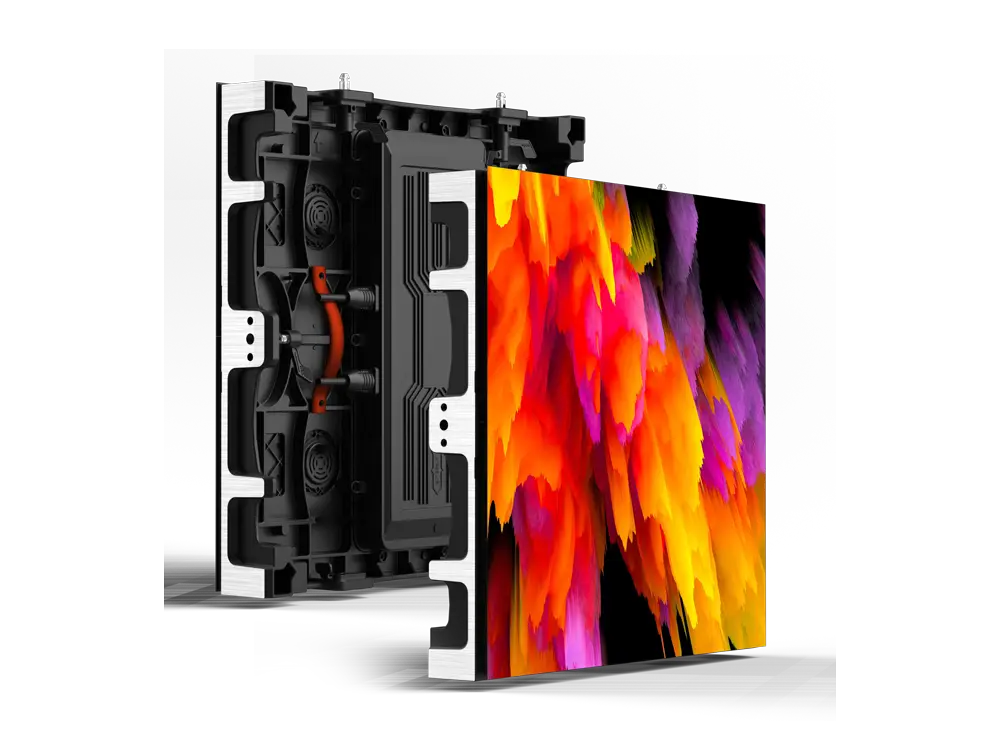

Die-casting Aluminum
Cabinet

Higher accuracy and flatness

3 Types of installation

KD PLUS Series available for XR solutions,LED dance floor, LED Wall and stage rental

XR solution
available

Soft or hard connection

Soft or hard connection for modules, back-up power supply and receiving card available（optional）

Easy to install and Maintenance

Easy for seamless installation, fast locks available

INDOOR KD PLUS SERIES PARAMETER TABLE

  Model No. KD PLUS 0125 KD PLUS 0126 KD PLUS 0129 KD PLUS 0139 KD PLUS 0149 KD PLUS 0152 KD PLUE 0162
  Pixel Pitch(mm) 2.5mm 2.6mm 2.976mm 3.91mm 4.81mm 5.2mm 6.25mm
  LED Configuration SMD1415 SMD1415 SMD1415 SMD1921 SMD1921 SMD1921 SMD1921
  Pixel density(dots/m²) 160,000 147,576 112,896 65,536 43,264 36,864 25,600
  Module resolution 100x100 96x96 84x84 64x64 52x52 48x48 40x40
  Module Dimensions(WxHxD)(mm) 250.85x250.85x18 250.85x250.85x18 249.8x249.8x18 249.8x249.8x18 249.6x249.6x18 249.6x249.6x18 249.4x249.4x18
  Brightness(cd/m²) 1200 1200 1200 1200 1200 1200 1200
  Max./Avg. Power Consumption(w) 200/100 200/100 200/100 200/100 200/100 200/100 200/100
  Viewing Angle
150°/150°
  Moudle size（mm）
500x500x78
  Maximum load bearing
1500kg/m²
  Refresh rate
1920-7680Hz(optional)
  Protection level
IP54/IP45
Swipe left or right to view more content

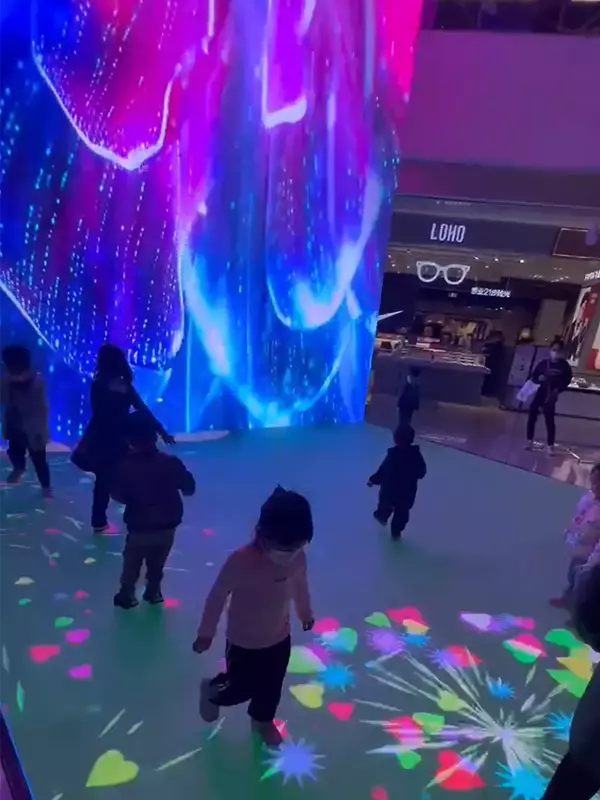

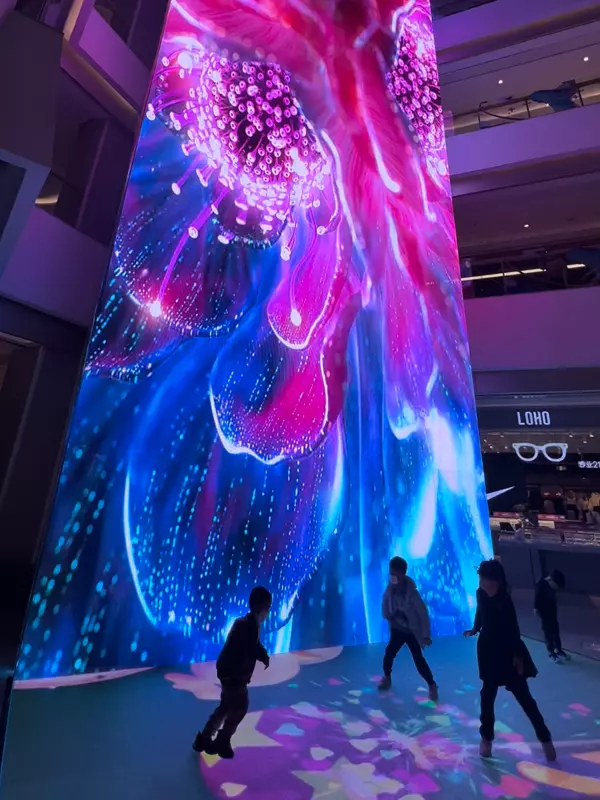

Application Cases
