Rolling LED Display K-MAT

Rolling LED Screens
K-Mat Seriser

Magic carpet LED screen can also be called rolling LED display is a new product with patented technology from kinglyled， is a flexible LED  screen that can be hung, raised, lowered, rolled up or folded by mechanical devices for rental events, or laid flat on the ground for use as an dance LED video floor screen.pixel pitch: P0.78,P0.9,P1.25,P1.56,P1.95,P2.604,P3.91

Installation Method

Support customization

Support customization

High-definition display

High-definition display

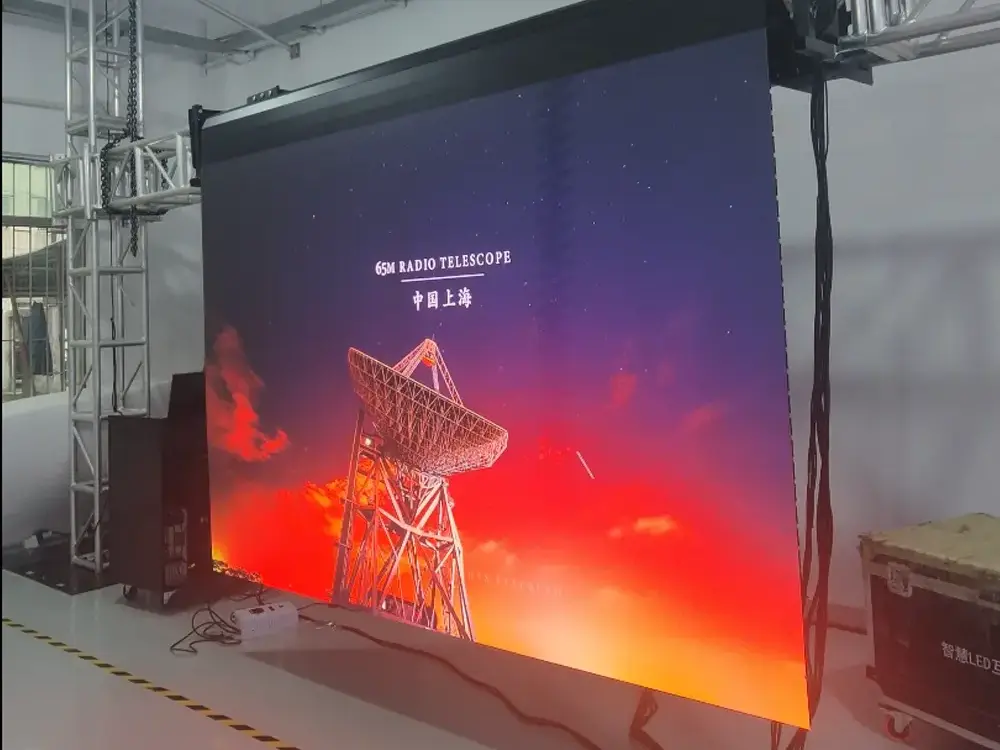

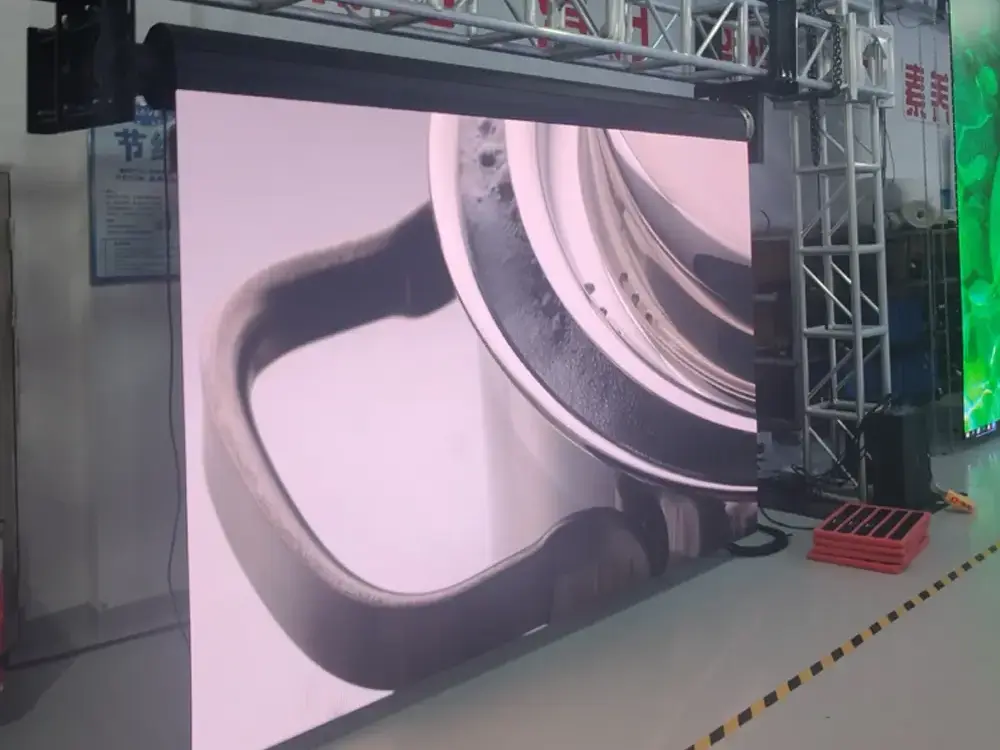

Reel design

Reel design

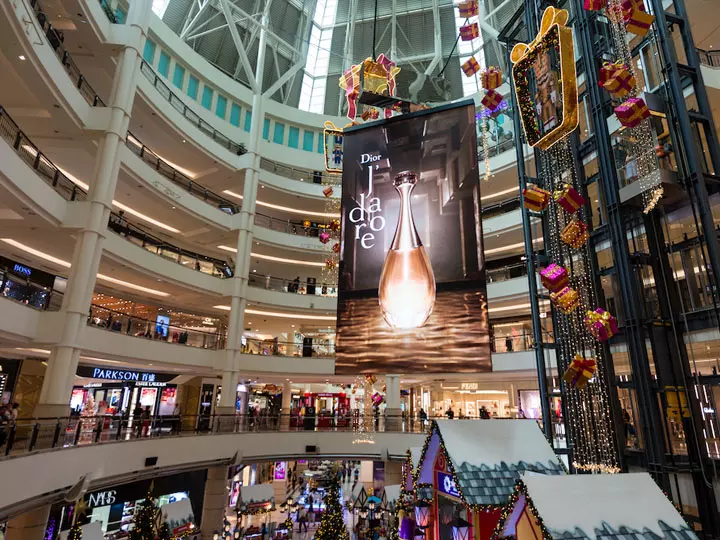

Wall mounting

Wall mounting

Ground installation

Ground installation

Feature Introduce

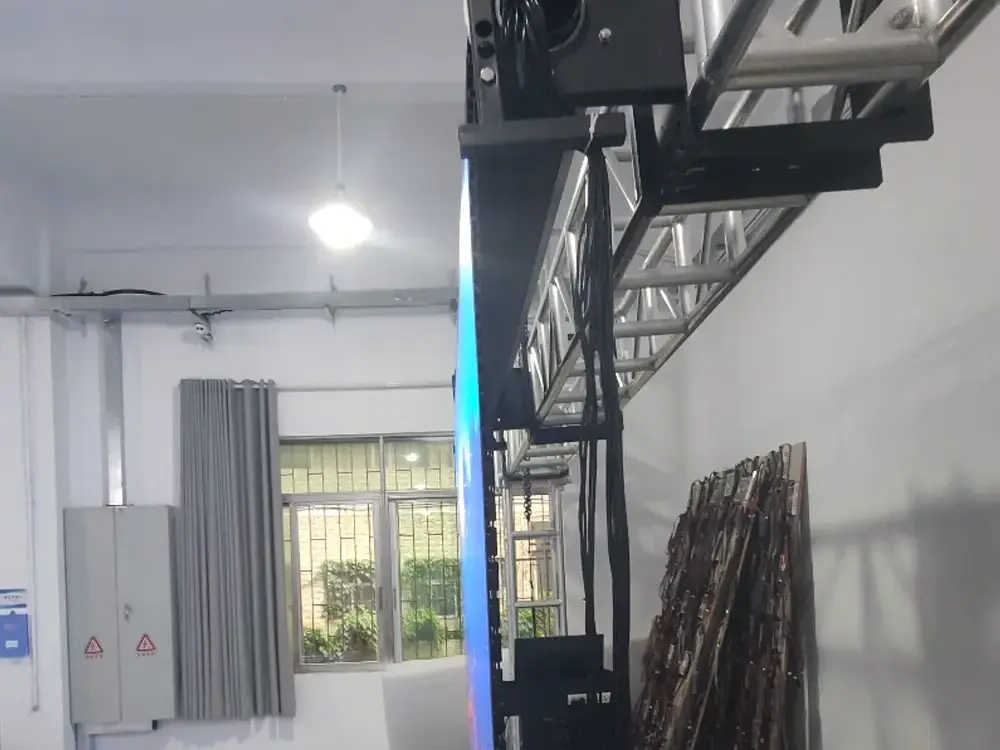

  • Ultra-light, ultra-thin(thickness: 17mm)
  • DC24V-48V input, safety usage
  • High-end DOB solution, big viewing angle
  • Exquisite shape and foldable, small storage spaces
  • No need support bases, lay down the ground directly
  • Seamless splicing, no screw holes on the surface of module, and exquisite structure

KinglyLED LED Roll-Up Display Screen Certificates

  • Ultra-light, ultra-thin(thickness: 17mm)
  • DC24V-48V input, safety usage
  • High-end DOB solution, big viewing angle
  • Exquisite shape and foldable, small storage spaces
  • No need support bases, lay down the ground directly
  • Seamless splicing, no screw holes on the surface of module, and exquisite structure

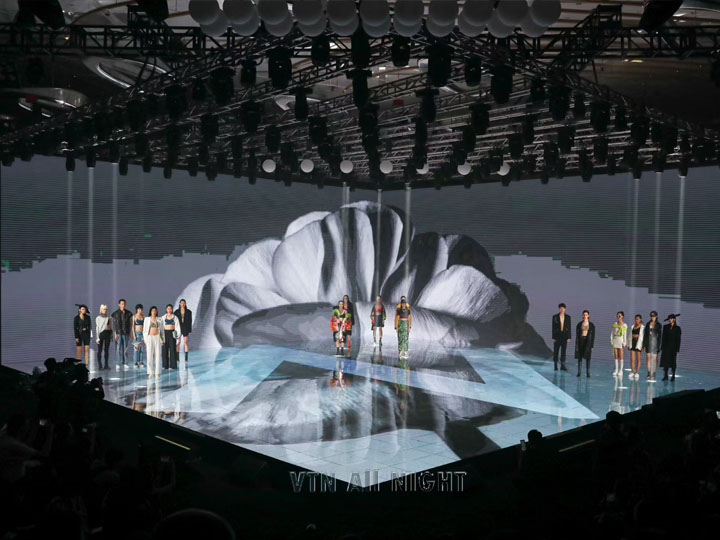

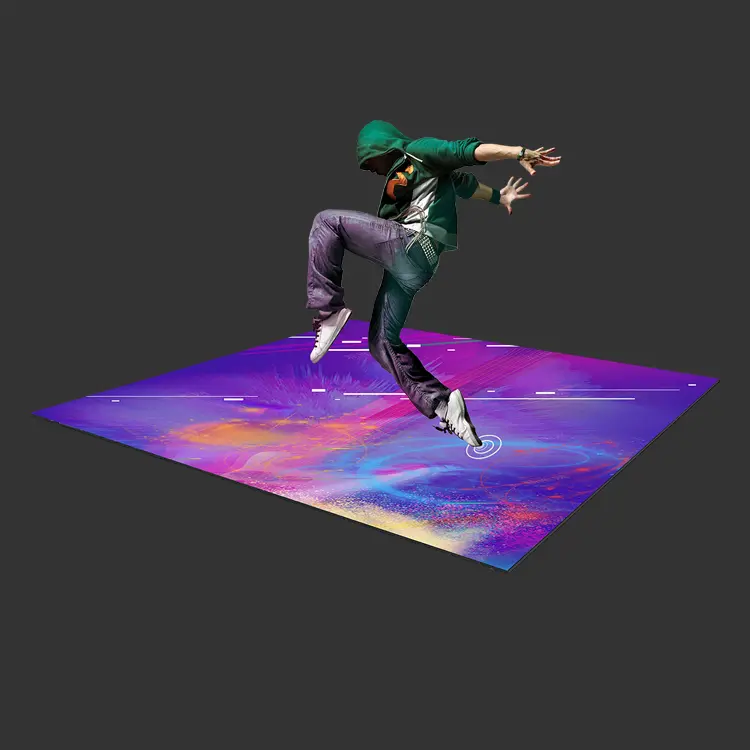

Roll up LED Screen For Dance

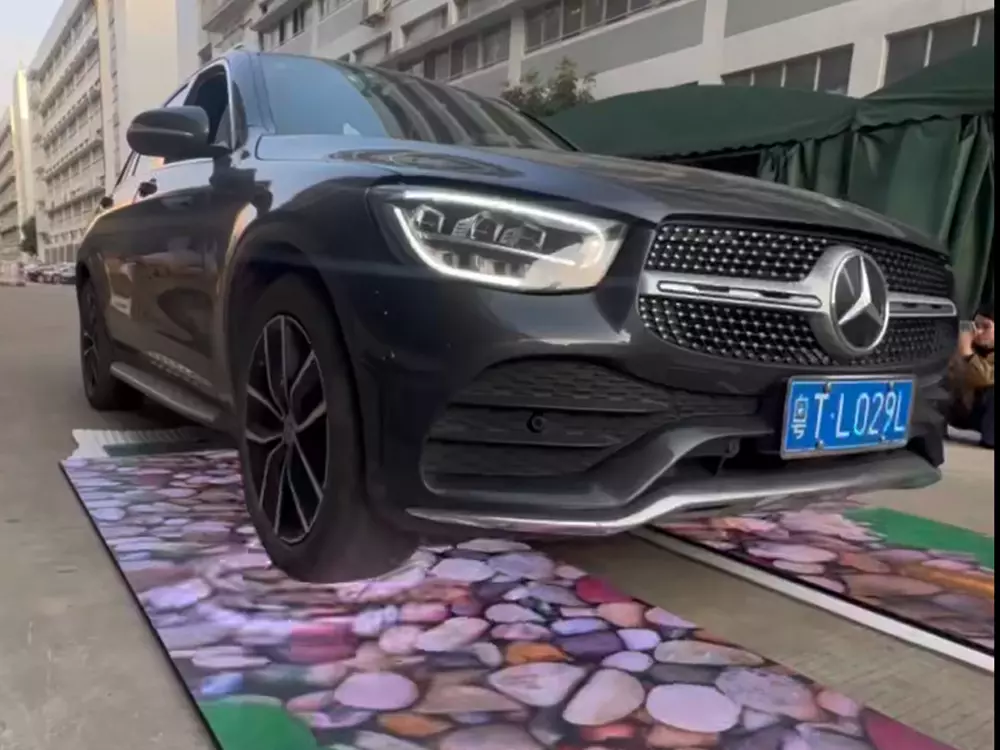

LED Floor

  • 1000kg/m2 load capacity
  • Built-in interactive chip, sensing speed 0.016s
  • High precision seamless splicing supports size customization
  • Multiple pixel pitch（P0.78、0.9、1.2、1.5、1.95、2.6、3.91）

Module size

Multiple Installation Methods Flexible Installation

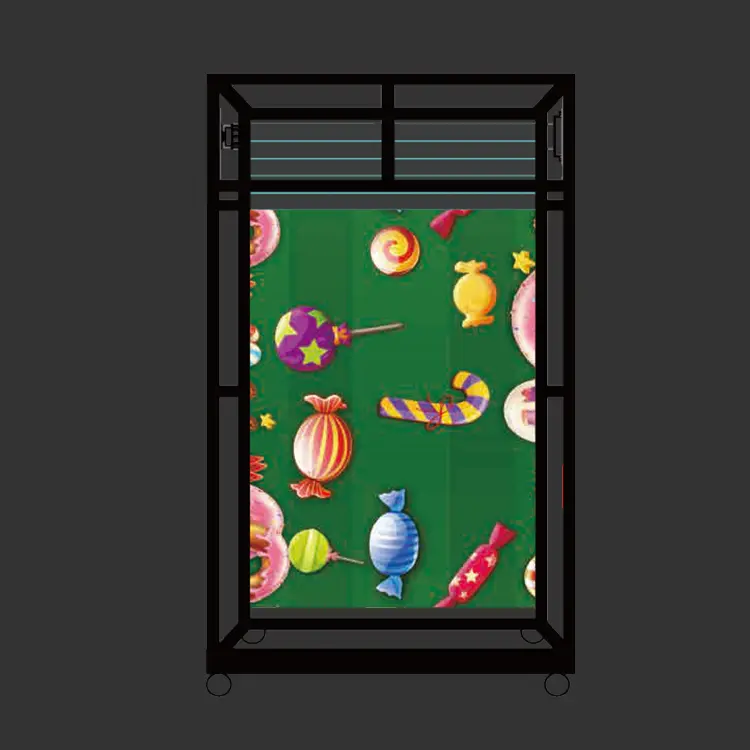

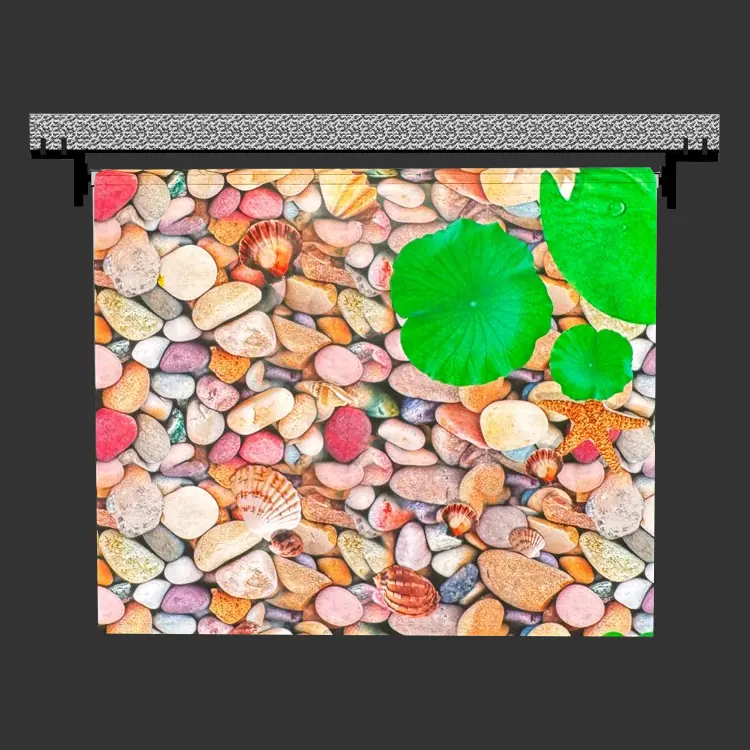

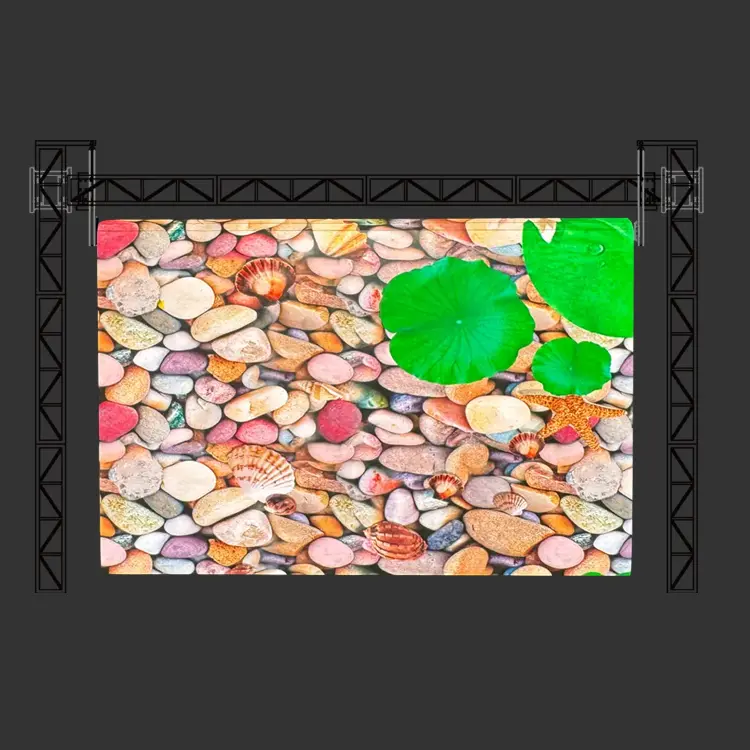

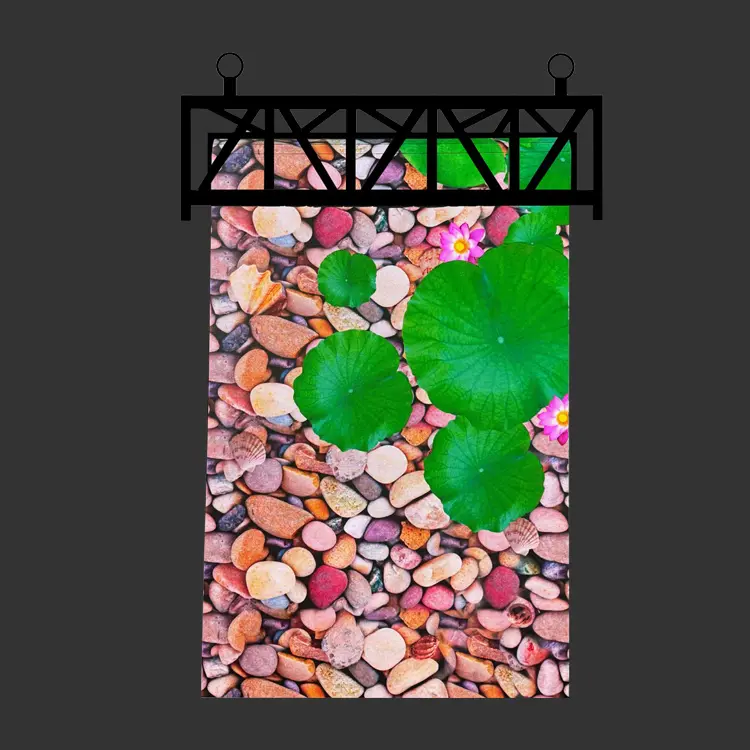

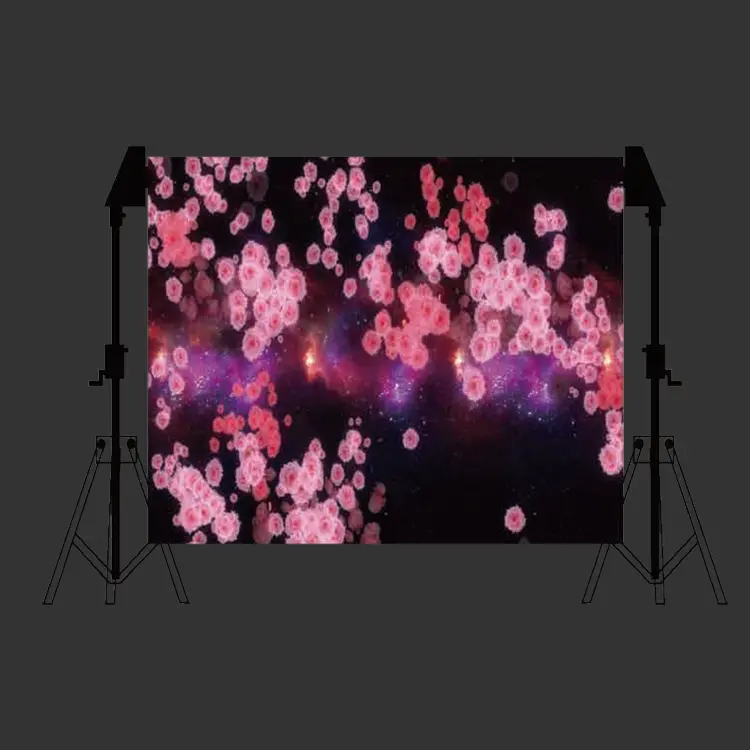

K-MAT series products offer a variety of installation methods, featuring flexible and convenient installation. These methods include ceiling fixed installation, floor tile installation, truss rental mobile installation,hanging, truss installation,Fast rental with a frame installation and tripod installation, which can easily meet the needs of various application scenarios.

Easy Installation and Maintenance

Creative Flexible series LED display installation and maintenance are simple and convenient from front or rear, no professinal skill is needed, save maintenance time and cost.

K-MAT SERIES PARAMETER TABLE

  Model No. M0078 M0097 M0125 M0156 M0195 M0026 M0391
  Pixel Pitch(mm) 0.78mm 0.976mm 1.25mm 1.56mm 1.95mm 2.6mm 3.91mm
  LED Configuration SMD0606 SMD0606 SMD1010 SMD1010 SMD1010/1415 SMD1415/1515 SMD2121
  Pixel density(dots/m²) 1638,400 1048,576 640,000 409,600 262,144 147,456 65,536
  Module resolution(pixels) 640x80 512x64 400x50 320x40 256x32 192x24 128x16
  Brightness(cd/m²) 400 400 400 600 600 600 600
  Max power consumption(w) 570 540 450 510 480 480 480
  Avg power consumption(w) 190 180 150 170 160 160 160
  Scanning method 1/80s 1/64s 1/50s 1/40s 1/32s 1/24s 1/16s
  Moudle size（mm）
500x62.5x17nn(±0.5mm)
  Maximum load bearing
1000kg/m²
  Refresh rate
3840-7680Hz(optional)
  Protection level
IP54/IP21
  Installation method
Floor/Rolling/(optional）
Swipe left or right to view more content

Main Application Areas of Roll-up LED Screen

Rolling LED screens, with their innovative design and advanced structural technology, are suitable for a wide range of applications and can perfectly replace many traditional LED screen products. Their lack of a cabinet or structure makes them lighter and thinner, offering advantages not found in most other LED screens. The following are the main applications for this multifunctional LED screen.

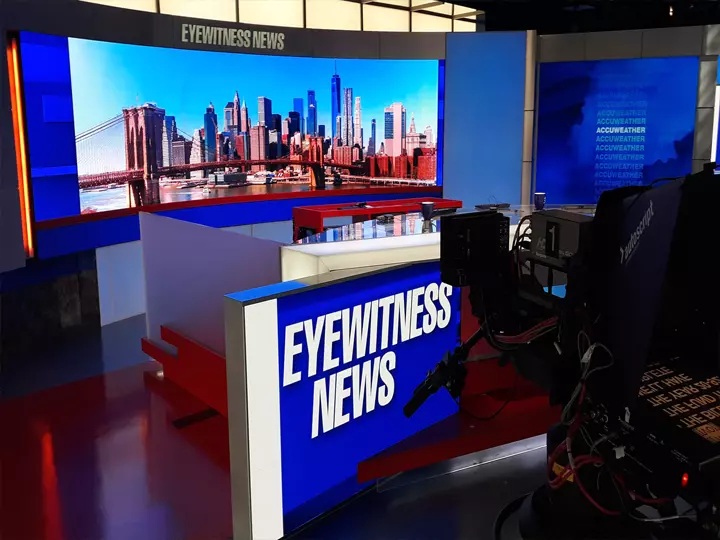

Rolling LED Screen FOR Corporate

Rolling LED Screen FOR Corporate

Rolling LED Display FOR Commercial Display

Rolling LED Display FOR Commercial Display

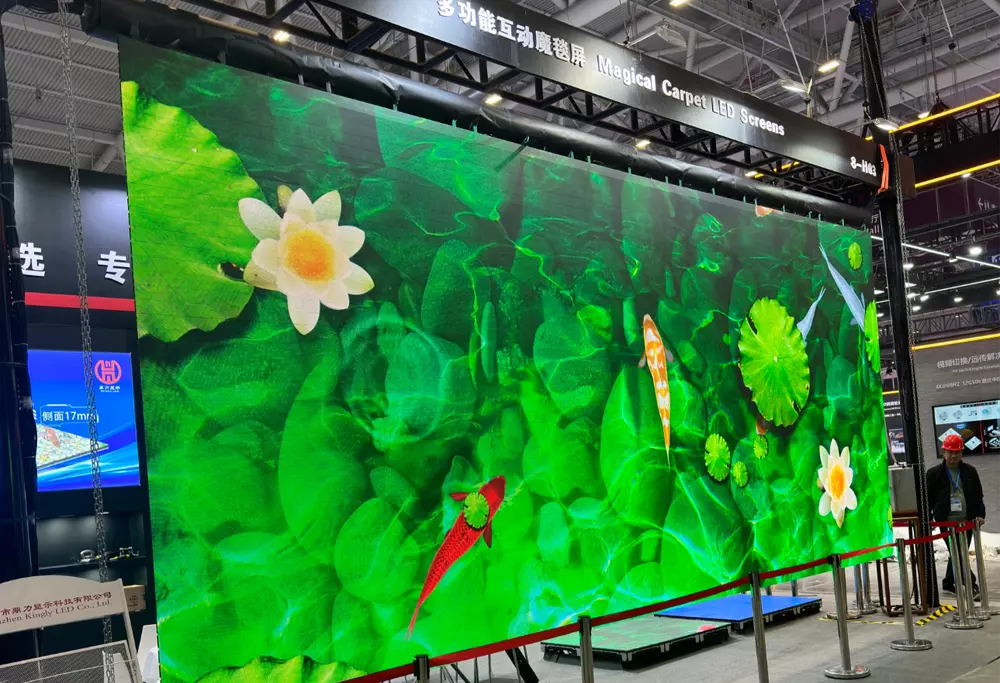

Trade Shows and Exhibitions

Trade Shows and Exhibitions

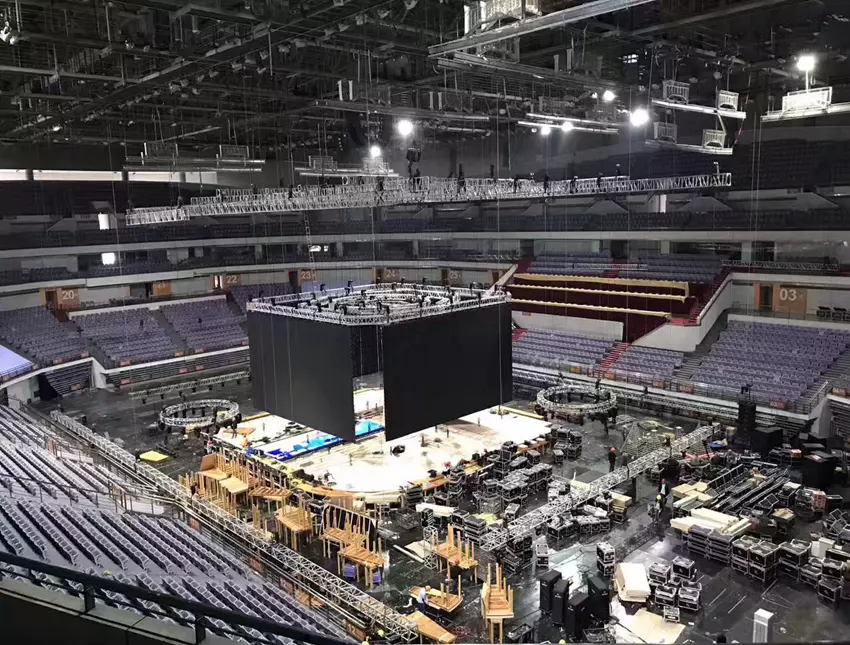

Entertainment Venues

Entertainment Venues

Retail Environments

Retail Environments

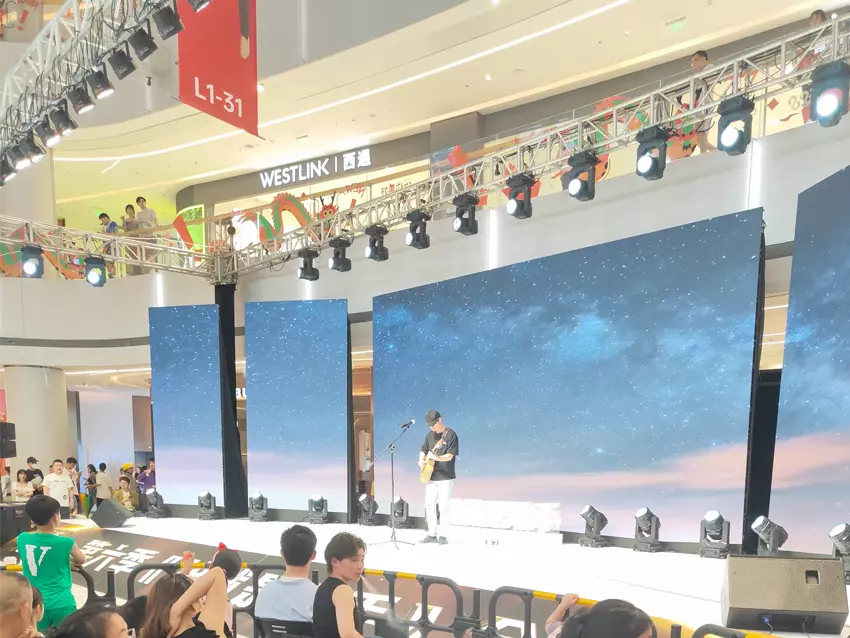

Special Events and Signage

Special Events and Signage
