Indoor KD

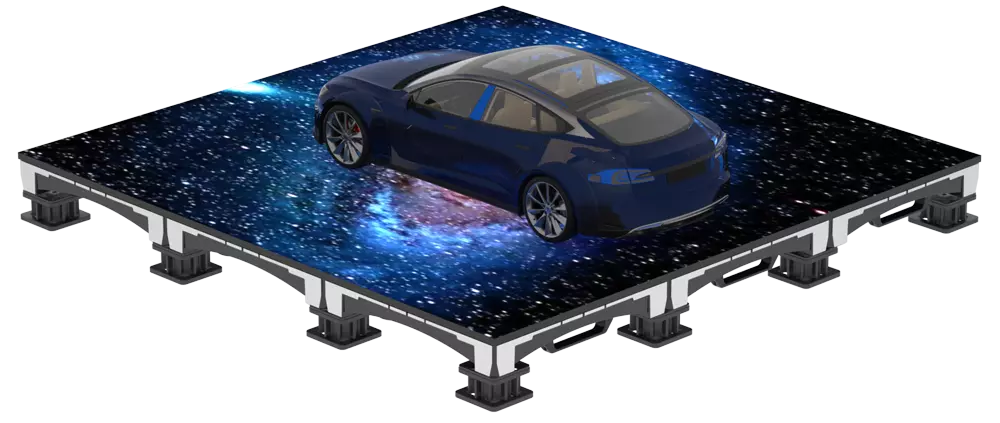

Indoor Video Floor KD Series

KD series for indoor LED video floor, available for full front maintenance, including module, power supply, and receiving card. Available for both DOB and MASK solutions.More functions, be led floor, led wall, and rental applications. available for indoor XR solutions.

Die-casting Aluminum
Cabinet

Higher accuracy and flatness

Module Front maintenance

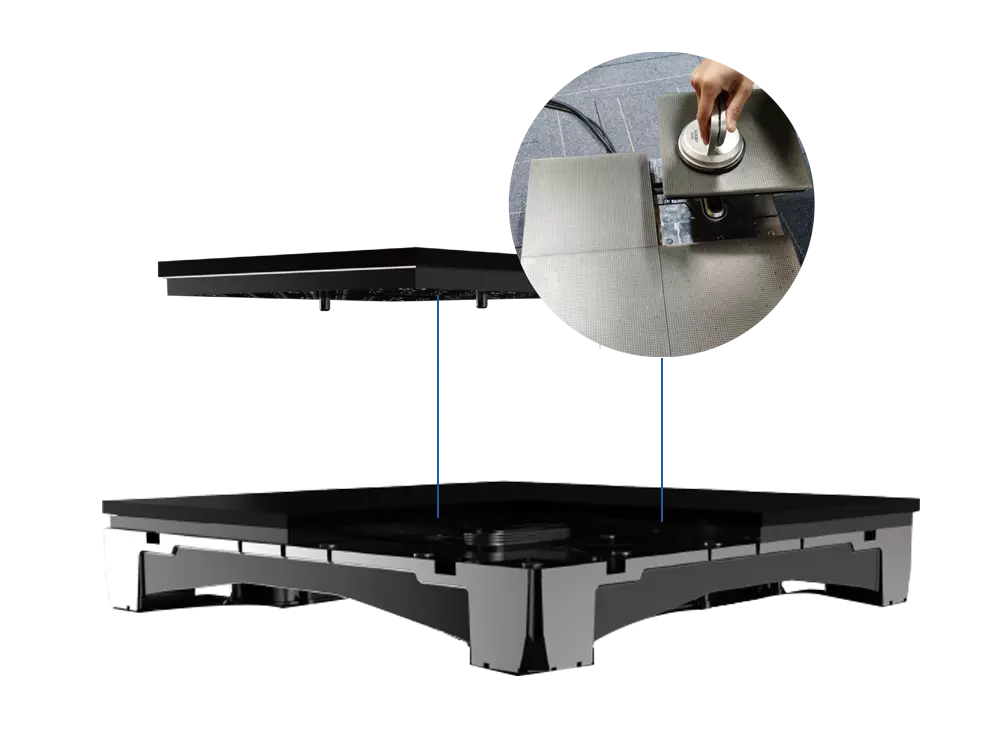

Magnetic designed module

Water Drain Flume Design

Enhance water proof effection

Build-in Gradienter

Help Fast Installation and Adjustment

XR solution
available

Power Supply and Card Support Dual
Backup Design(optional)

More stable and safety for your projects

Cabinet Size

INDOOR KD PLUS SERIES
PARAMETER TABLE

  Model No. KD0118 KD0119 KD0125 KD0126 KD0129 KD0139
  Pixel Pitch(mm) 1.83mm 1.95mm 2.5mm 2.6mm 2.976mm 3.91mm
  LED Configuration SMD1415-DOB SMD1415-DOB SMD1415 SMD1415 SMD1415 SMD1921
  Module resolution 136x136 128x128 100x100 96x96 84x84 64x64
  Module Dimensions(WxHxD)(mm) 250x250x24 250x250x24 250x250x24 250x250x24 250x250x24 250x250x24
  Brightness(cd/m²) 600-1000 900-1800 900-1800 900-1800 900-1800 900x1800
  Max./Avg. Power Consumption(w) 200/100 200/100 200/100 200/100 200/100 200/100
  Viewing Angle
160°/160°
  Moudle size（mm）
500x500x92
  Maximum load bearing
2200kg/m²
  Refresh rate
3840Hz
  Protection level
IP54/IP45
Swipe left or right to view more content

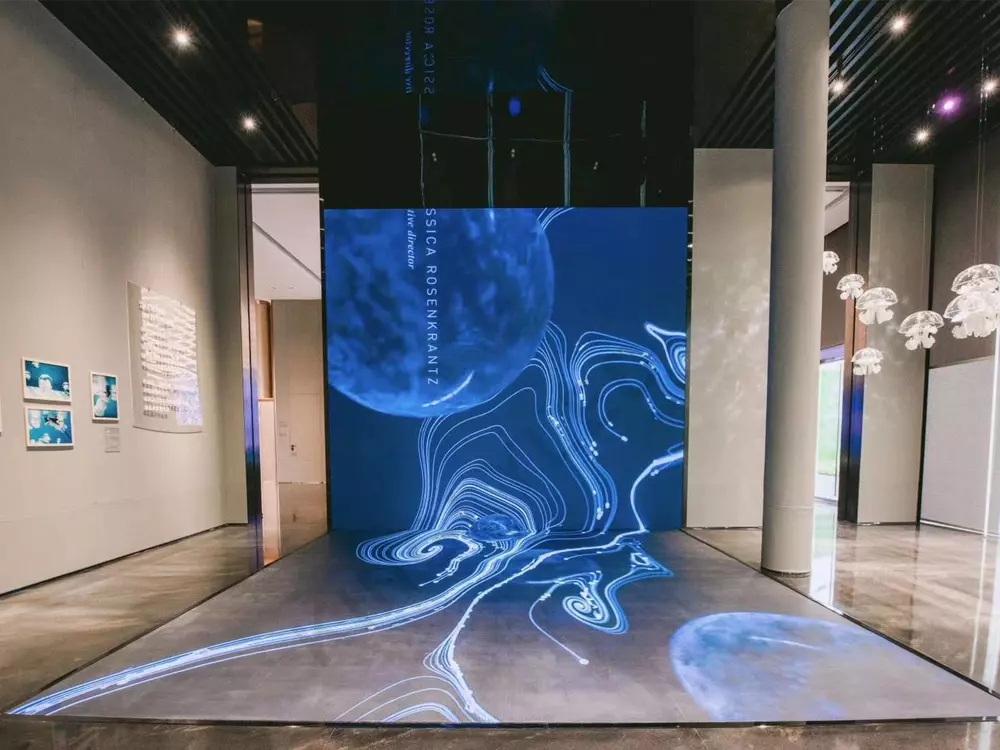

Application Cases
