staircase LED Screen S Series

What is interactive staircase
LED screen?

The interactive staircase LED screen (also called interactive step LED display) is a creative customized LED display solution specially made for stair treads. It consists of segmented, step-shaped heavy-duty LED modules that perfectly fit each stair surface.

Equipped with built-in pressure sensors, radar or infrared induction system, the screen can detect footsteps in real time. When visitors step on the stairs, it instantly triggers dynamic visual effects such as ripples, animation transitions, piano sound effects and scene switching.

It can continuously play vivid videos, pictures and animations in standby mode. With reinforced anti-slip, load-bearing and waterproof surface, it can withstand frequent pedestrian walking.

Get Quote Now
Specs Download

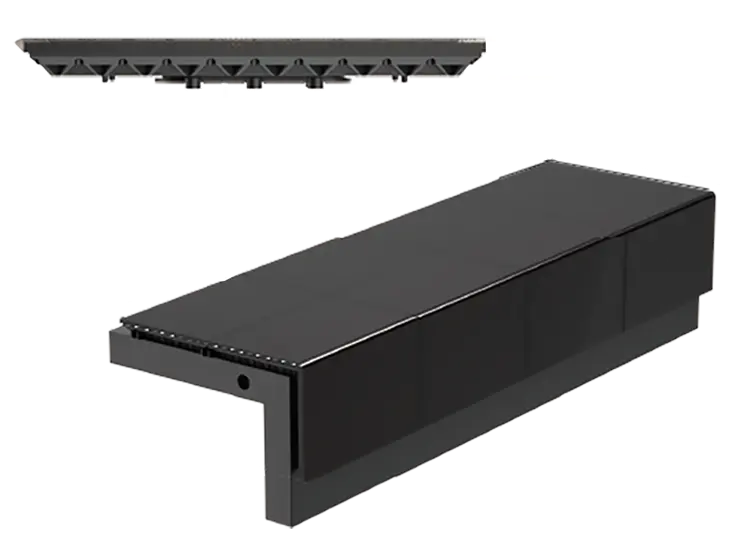

Cabinet Size

Cabinet thickness 45mm, total 66mm, L type design

Support customization

Support customization

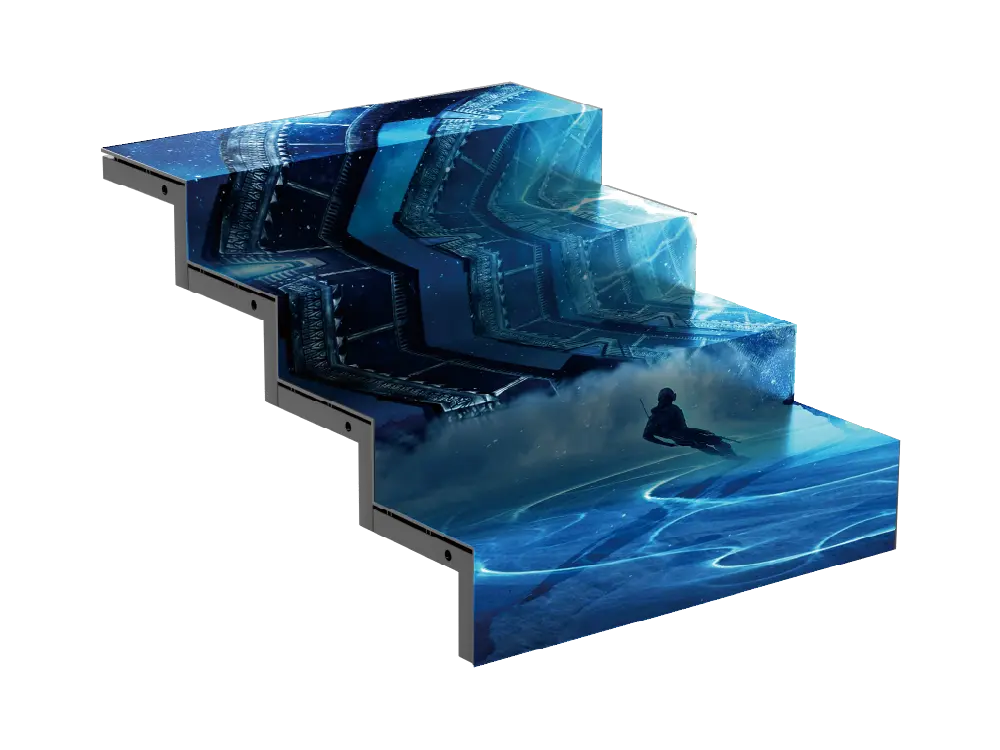

High-definition display

High-definition display

Ground installation

Ground installation

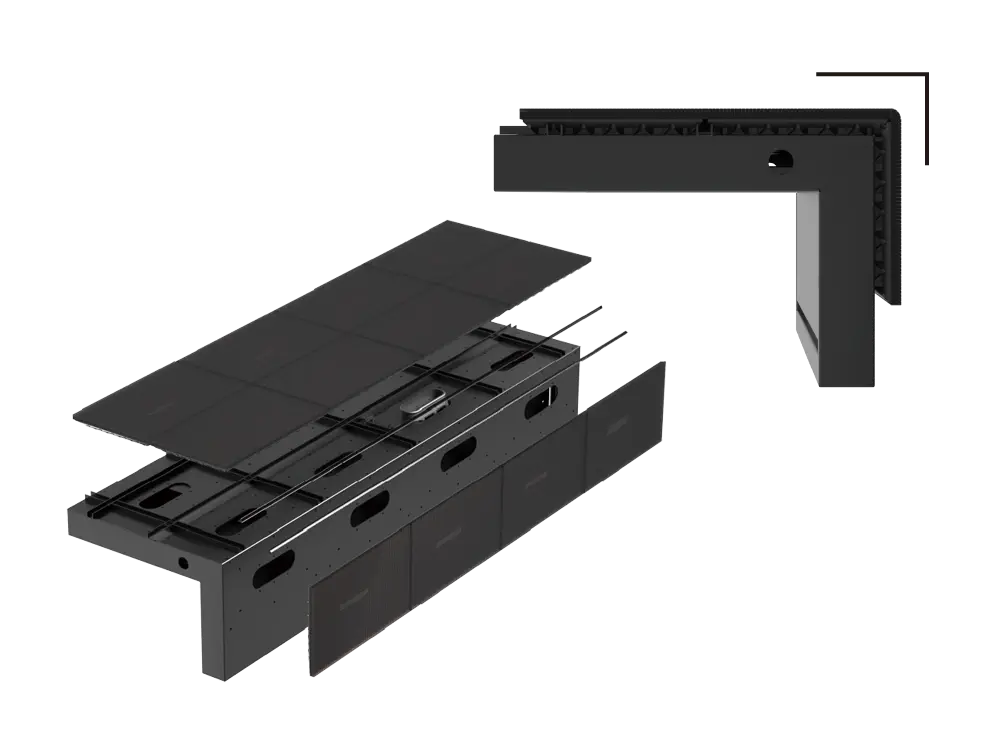

Customized Design

Customized design with curve connection at the edge, safe and good sealing performance.

Integrated with cabinet,power supply, module, controller

IP54/IP45 protection for indoor application

High Load bearing

High Load Weight performance 2.0T/m²

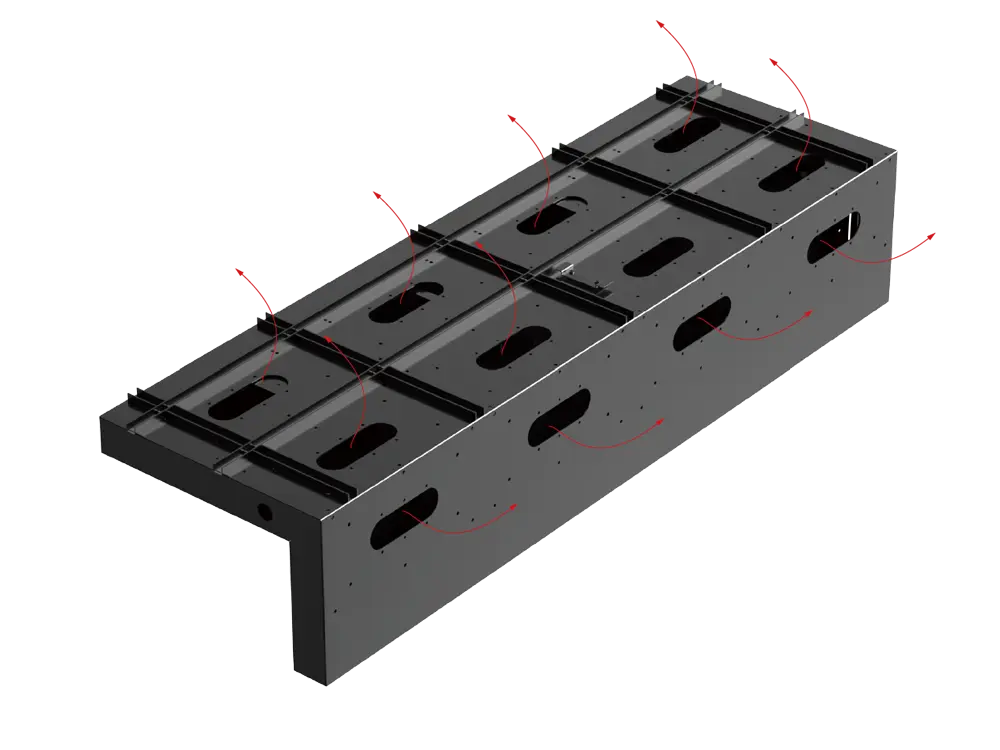

Perfect Heat Dissipation

Special designed heat dissipation channel, enhance the performance, longer the product life span

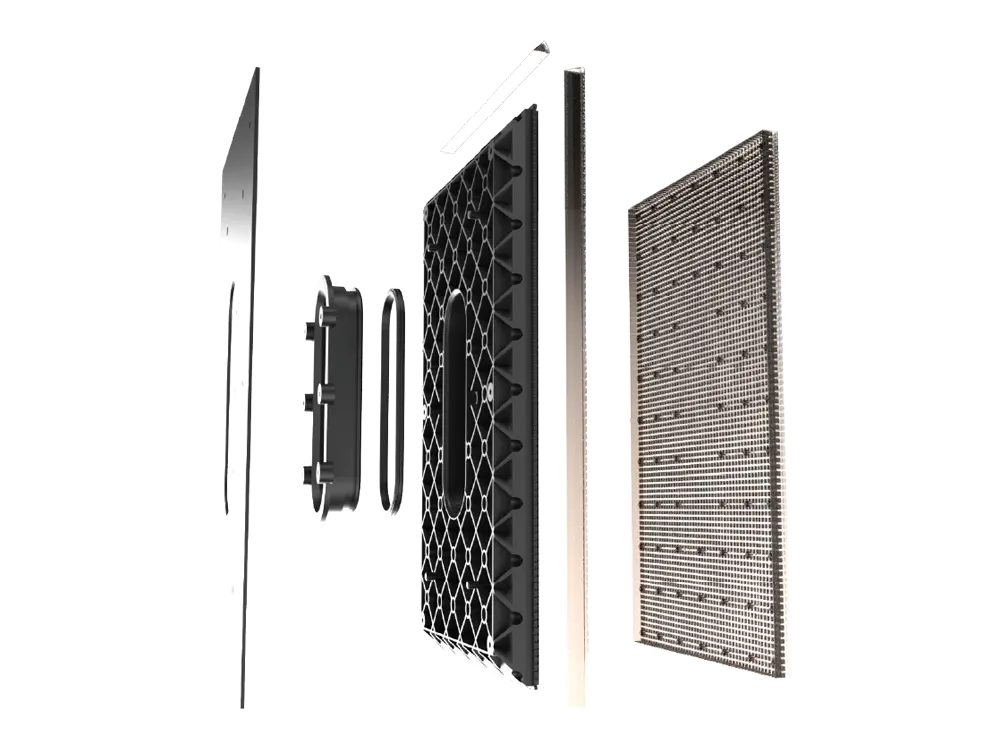

Featured Detail

Stability with good protection

All connectors inside gold-plated. Both signal and electric wire plugs are water-proof designed

Patented mask technology

Selected LG material with patented tech make sure no color difference and better display effect

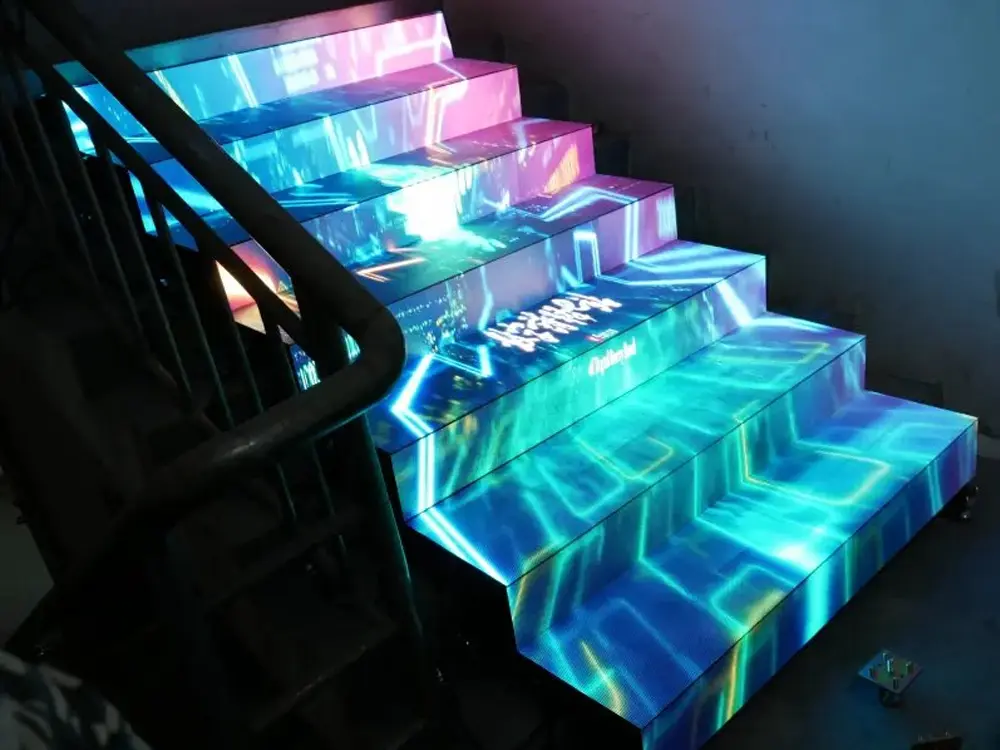

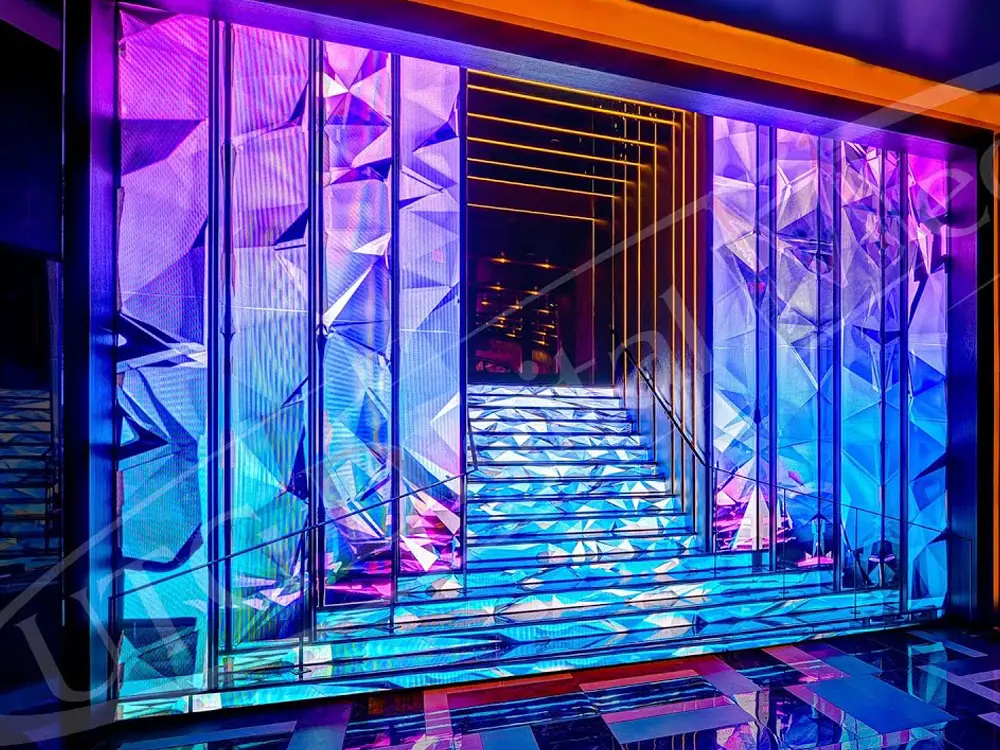

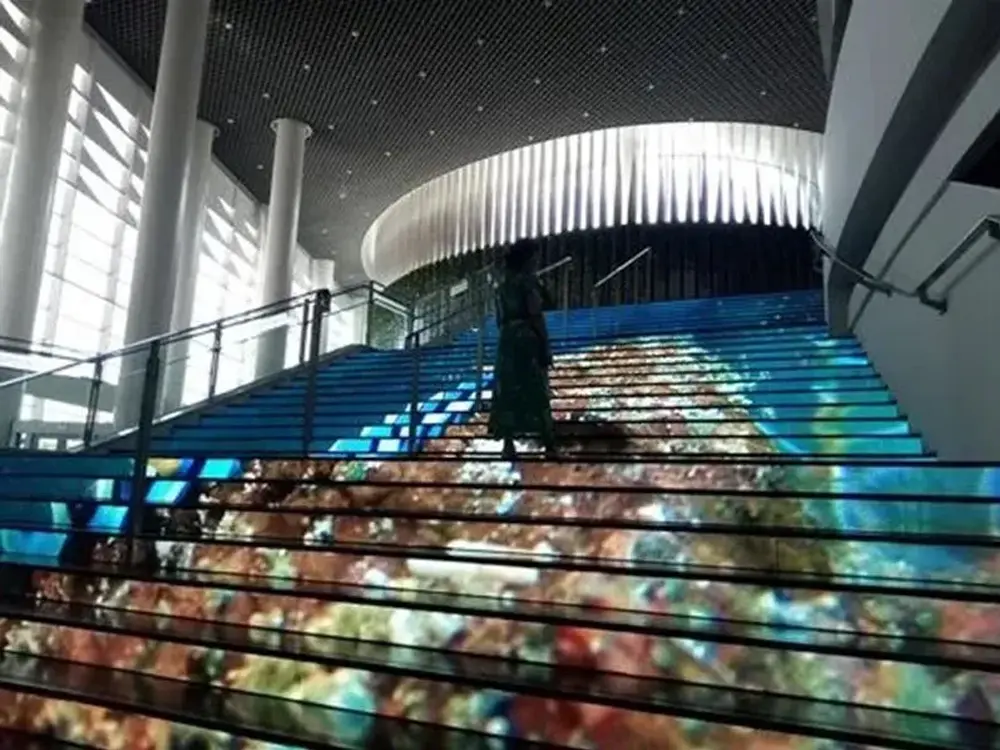

Show Case

Staircase Screen Parameter

  Model No.
S0129
  Pixel Pitch(mm)
2.97
  LED Configuration
SMD1415
  Pixel density(dots/m²)
112,896
  Brightness(cd/m²)
900~3000
  Module Size(W x H x D)(mm)
250 x 150 x 21
  Module Qty
12
  Module Resolution
84 x 50
  Cabinet Size(W x H x D)(mm)
1000 x 300 x 150 x 66
  Cabinet Resolution
150 x 336
  Cabinet Weight(Kg/Cabinet)
19.5
  Cabinet Material
Iron
  Max Load-Bearing
2200kg/m²
  Gray level
14bits
  Max./Avg. Power(W/Cabinet)
400/200
  Refresh Rate
3840Hz
  IP Rating(Front/Rear)
IP54/IP45
