KD Pro Series

KD Pro Series

KD Pro series is professional indoor LED video floor screen, the industry's first 500x1000 die-cast aluminum floor tile screen, with diverse installation methods, breaking with convention and showcasing a unique human-screen interaction.

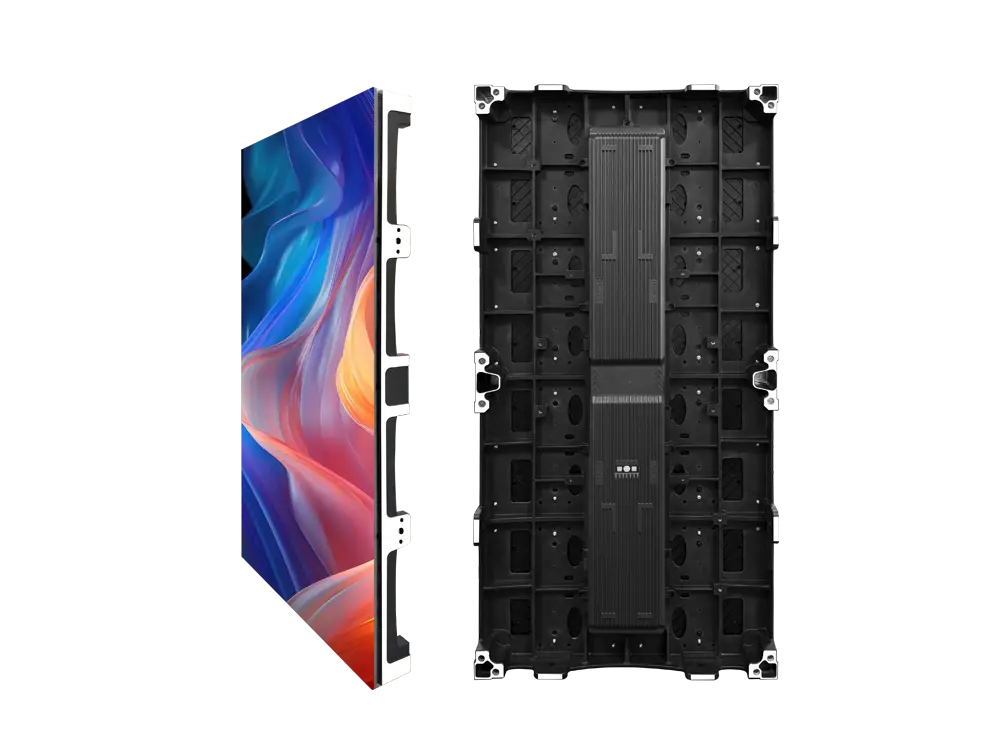

Die-casting Aluminum Cabinet

Higher accuracy and Flatness

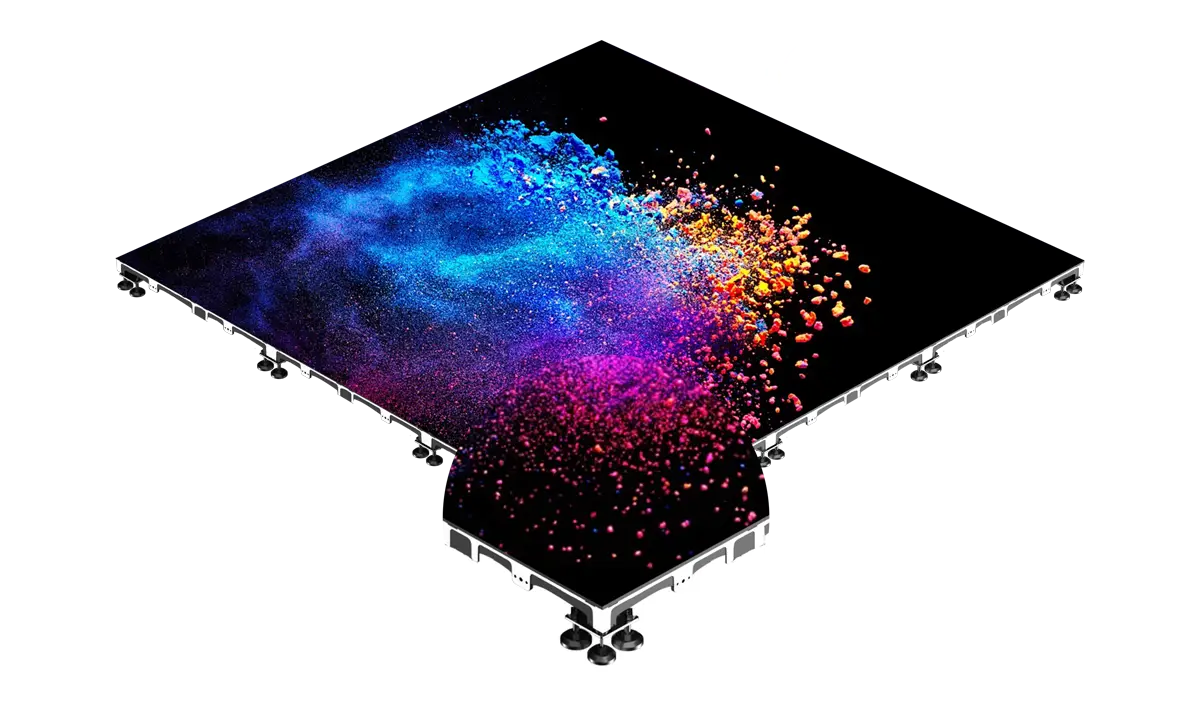

Interactive LED video floor solutions

Die-cast aluminum plates offer better flatness and higher precision.

The module has a built-in self-developed interactive sensor chip with a response time of only 0.016 seconds.

Slim & Light Design

Fast Heat Dissipation

Seamless Splicing

Front & Rear Maintenance

High Load-bearing Capacity

Flexible & Rigid Connection

Easy installation

Interlocking latches can be added between the cabinets to ensure seamless module connection. They can be quickly assembled using various installation methods, including facade, ground, and rental. The cabinets are made of 500*1000mm die-cast aluminum, CNC machined for high precision, enabling seamless splicing between cabinets.

Multiple installation methods

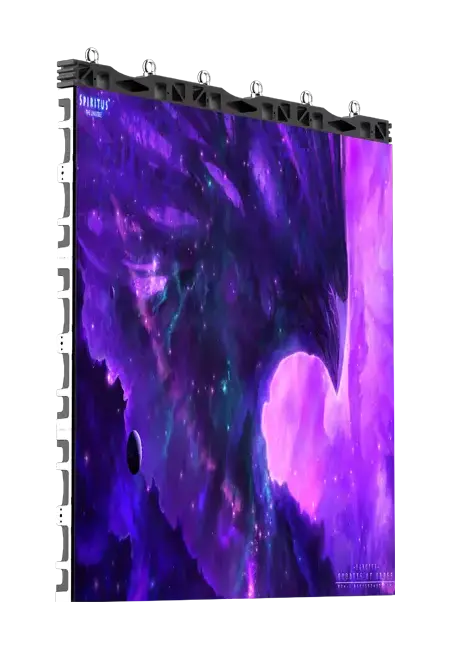

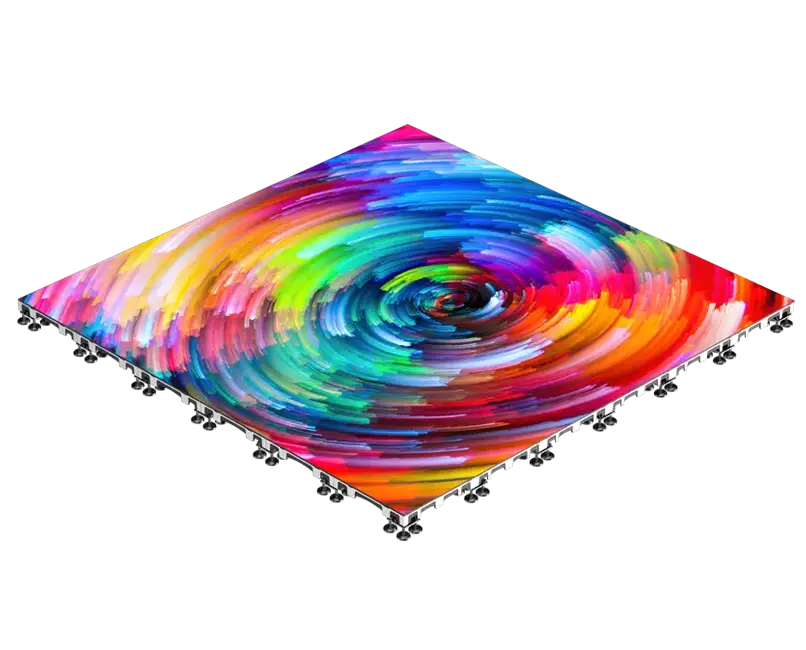

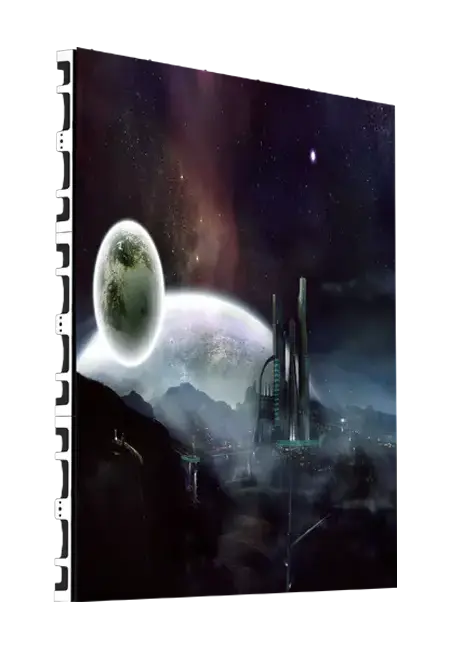

With multiple installation options, including flat installation, wall mounting, and rental installation, this versatility can meet the needs of any application scenario.

  Model Number KD Pro 0125 KD Pro 0126 KD Pro 0129 KD Pro 0139 KD Pro 0148 KD Pro 0152 KD Pro 0162
  Pixel Pixel 2.5mm 2.6mm 2.976mm 3.91mm 4.81mm 5.2mm 6.25mm
  LED Configuration SMD1415 SMD1415 SMD1415 SMD1921 SMD1921 SMD1921 SMD1921/2727
  Pixel density (dot/m²) 160,000 147,456 112,896 65,536 43,264 36,864 25,600
  Module Resolution 100x100 96x96 84x84 64x64 52x52 48x48 40x40
  Module Dimensions (W x H x D)(mm) 250.85x250.85x18 250.85x250.85x20 249.8x249.8x20 248.8x249.8x18 249.8x249.8x18 248.8x249.8x18 249.8x249.8x18
  Cabinet Dimensions (W x H x D)(mm) 502x1004x80 502x1004x80 500x1000x78 500x1000x78 500x1000x78 500x1000x78 500x1000x78
 Cabinet Resolution 200x400 192×384 168x336 128×256 104×208 96x192 80×160
 Contrast Ratio 1500:1 1500:1 1500:1 1500:1 1500:1 1500:1 1500:1
 Brightness (cd/㎡) 1200 1200 1200 1500/3000（Required） 1500/3000（Required） 1500 1500/3000（Required）
 Max./Avg. Power (W/Cabinet) 640/320
  Operating Voltage 100-240V/AC 50-60Hz
  Viewing Angle 150°/150°
  Refresh Rate 1920-7680Hz(Optional)
  IP Rating (Front/Rear) IP54/IP43
  Cabinet Weight (Kg/Cabinet) 19.1
  Cabinet Material Aluminum Dicasting
 Max Load-Bearing 1500Kg
