Folding LED Display KF Series

Folding LED Display
KF Series

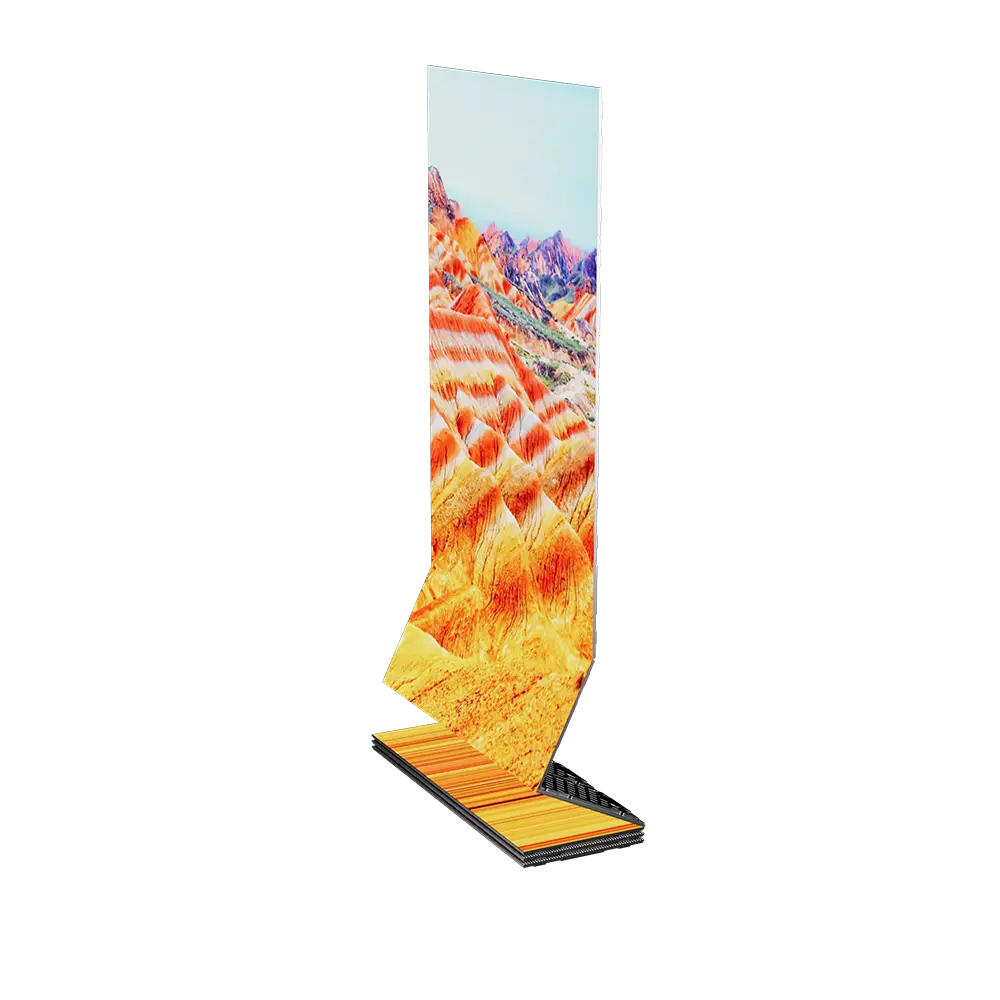

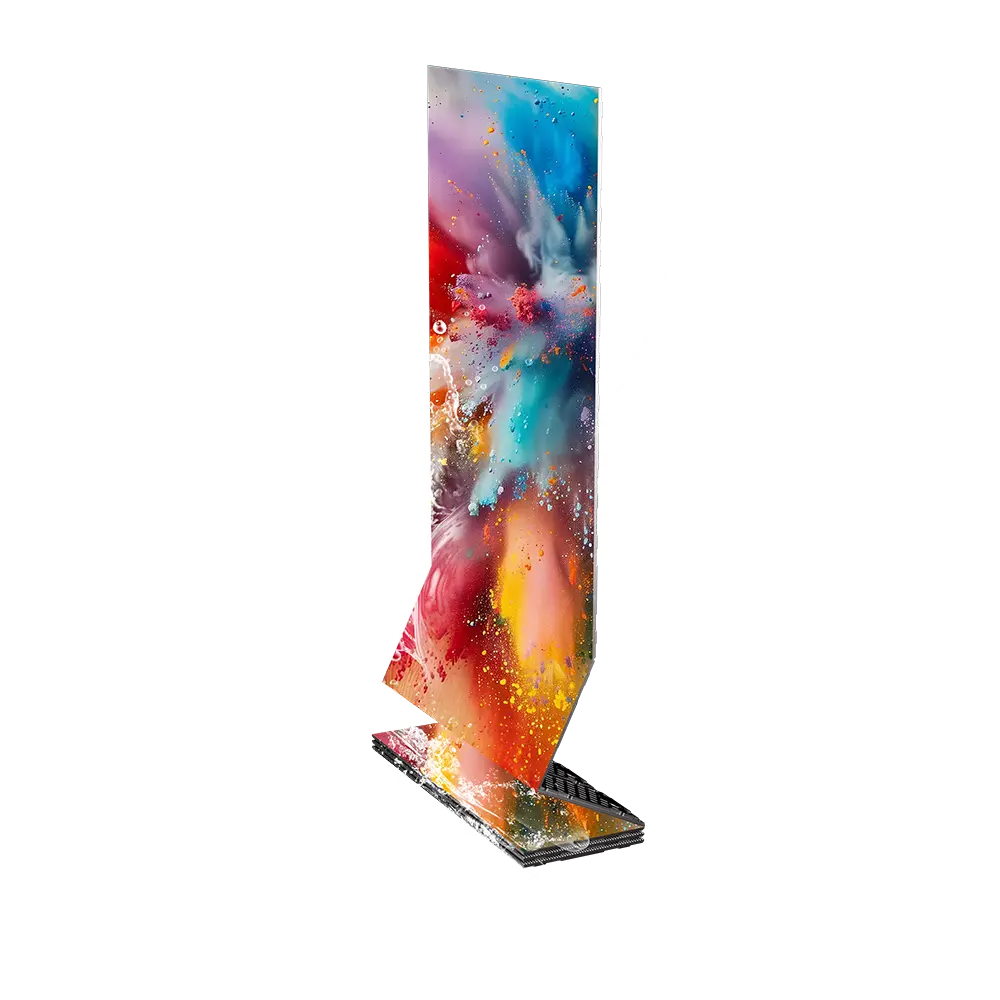

KF Series professional outdoor vertical hanging folding display screen, IP65 protection rating, can be folded 360 degrees.

Featured Detail

  • Ultra-thin & ultra-light screen design,thin size: 17mm,weight:12KG/m²
  • Vertical hanging available
  • Vertical mounting on building carriers for secure & reliable installation
  • Easy and convenient installation

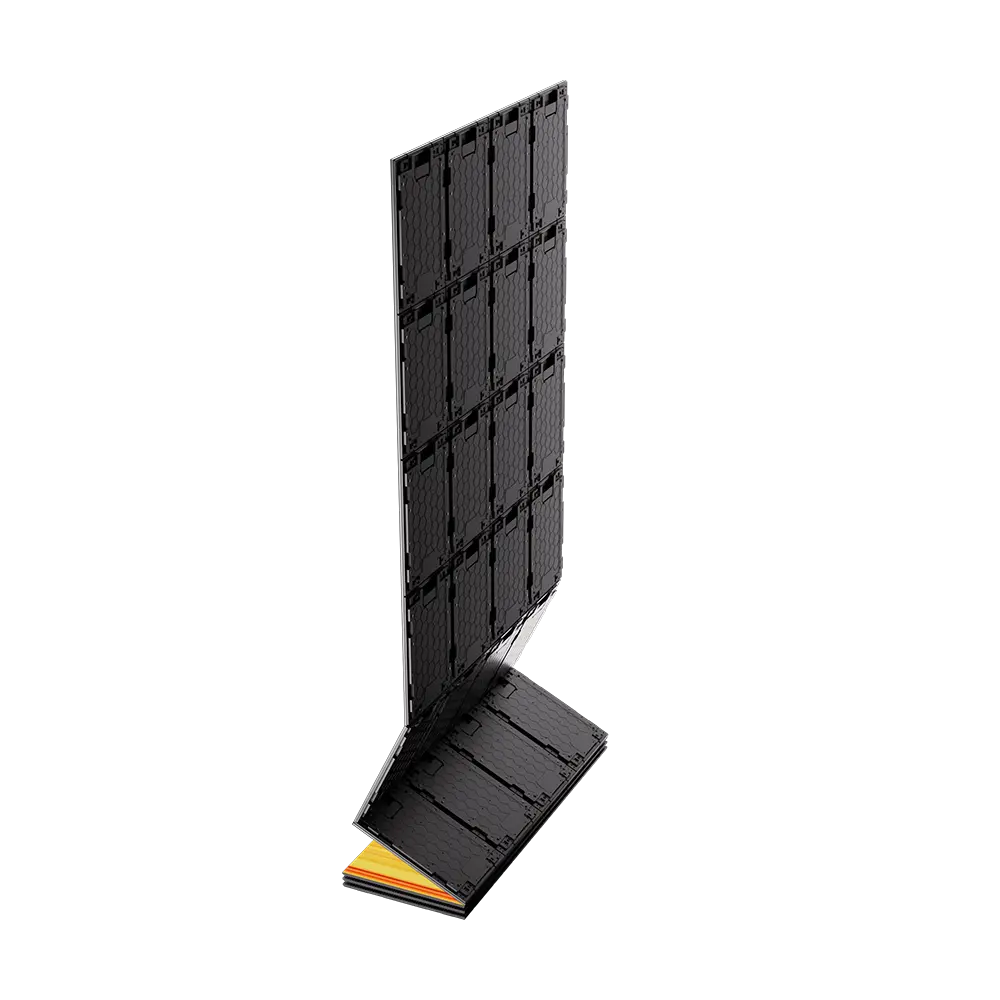

  • Lightweight foldable structure
  • External power supply for excellent heat dissipation
  • Quick splicing, seamless display
  • High definition & high brightness for stunning visual effects
  • Stable, durable and easy to maintain

Module Size

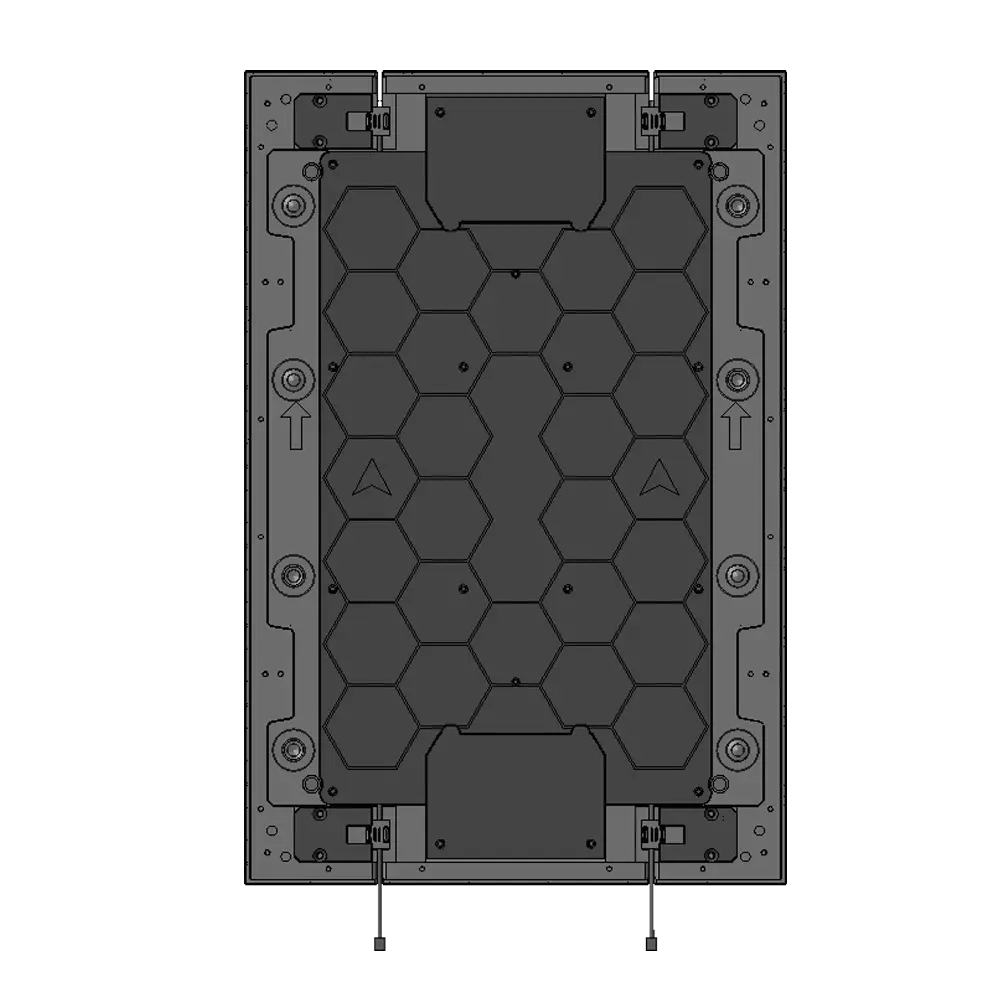

Dual Fixation: Magnets + Screws

Screen fixed on mounting bracket via built-in magnets

Stainless steel screws can go throu

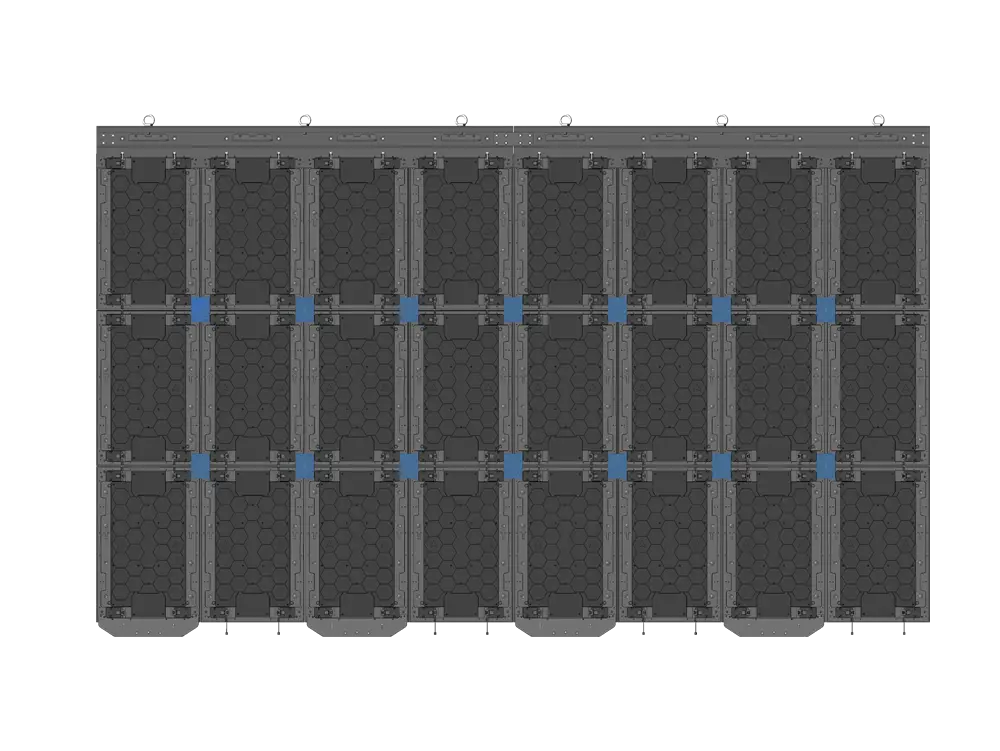

High Load-Bearing Capacity

Module width per column: 0.25m, Module is embedded with 2 steel wires Max load capacity: 750kg

Front & Rear Maintenance Supported

Choose front/rear maintenance based on installation method

Equipped with steel wire sliding buckles & built-in connectors

Enables fast module replacement

Lightweight Installation Structure

Screen weight: 12kg

Low load requirement for installation carrier

Lightweight design enables fast & easy installation

High Protection Level

Front & rear potting on modules. IP65 protection rating

  Pixel pitch 3.9mm 5.2mm 7.8mm 10.4mm 15.6mm
  Packaging type SMD1921 SMD1921 SMD1921 SMD2727 SMD2727
  Pixel density (dot/m²） 65，536 36，864 16,384 9,216 4,096
  Module resolution (pixels) 64x64 48x72 32x48 24x36 16x24
  Module size (W x H)(mm) 250x250 250x375 250x375 250x375 250x375
  Scanning method 1/16 1/16-1/12 1/16-1/6 1/3 1/2
  Brightness (cd/㎡) 6000 3000/6000 3000/6000 6000 6000
  Max power consumption 750 370/750 250/740 740 500
  Refresh method 3840 3840 3840-7680 7680 7680
  Optimal viewing distance (m) ≥4 ≥5 ≥8 ≥10 ≥16
  Max power consumption 750 370/750 250/740 740 500
  Foldable angle 180° 360° 360° 360° 360°
  Protection level
IP65
  Gray scale level
16
  Contrast ratio
2500:1
  Installation method
Hanging/Mounting installation
  Weight (kg/m²)
12
  Viewing angle
120°/120°
