Indoor KM

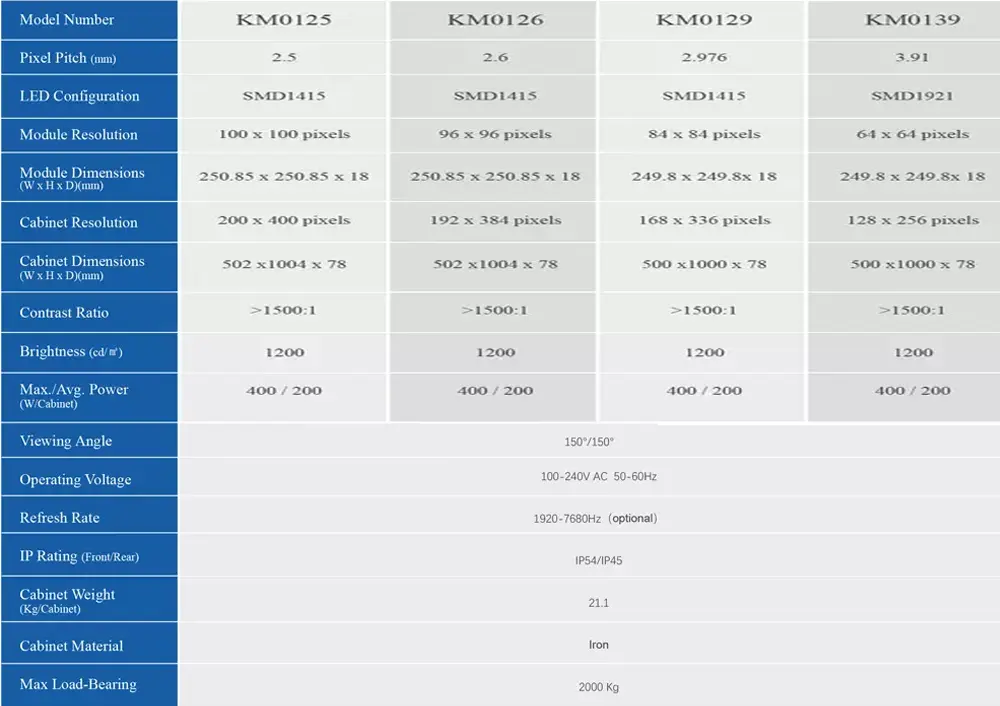

| Model Number | KM0125 | KM0126 | KM0129 | KM0139 |
| Pixel Pixel | 2.5mm | 2.6mm | 2.976mm | 3.91mm |
| LED Configuration | SMD1415 | SMD1415 | SMD1415 | SMD1921 |
| Pixel density (dot/m²) | 160,000 | 147,576 | 112,896 | 65,536 |
| Module Resolution | 100 x 100 Pixel | 96 x 96 Pixel | 84 X 84 pixel | 64 x 64 Pixel |
| Module Dimensions (W x H x D)(mm) | 250.85 x 250.85 x 18 | 250.85 x 250.85 x 18 | 249.8 x249.8 x 18 | 249.8 x 249.8 x 18 |
| Cabinet Dimensions (W x H x D)(mm) | 502 x 1004 x 78 | 502 x 1004 x 78 | 500 x 1000 x 78 | 500 x 1000 x 78 |
| Cabinet Resolution | 200 × 400 pixel | 192 × 384 pixle | 168 x 336 pixel | 128 × 256 pixel |
| Contrast Ratio | >1500:1 |
|||
| Brightness (cd/㎡) | 1200 |
|||
| Max./Avg. Power (W/Cabinet) | 400/200 |
|||
| Operating Voltage | 100-240V/AC 50-60Hz |
|||
| Viewing Angle | 150°/150° |
|||
| Refresh Rate | 1920-7680Hz(Optional) |
|||
| IP Rating (Front/Rear) | IP54/IP45 |
|||
| Cabinet Weight (Kg/Cabinet) | 21.1 |
|||
| Cabinet Material | Iron |
|||
| Max Load-Bearing | 2000Kg |
|||
