Outdoor KA

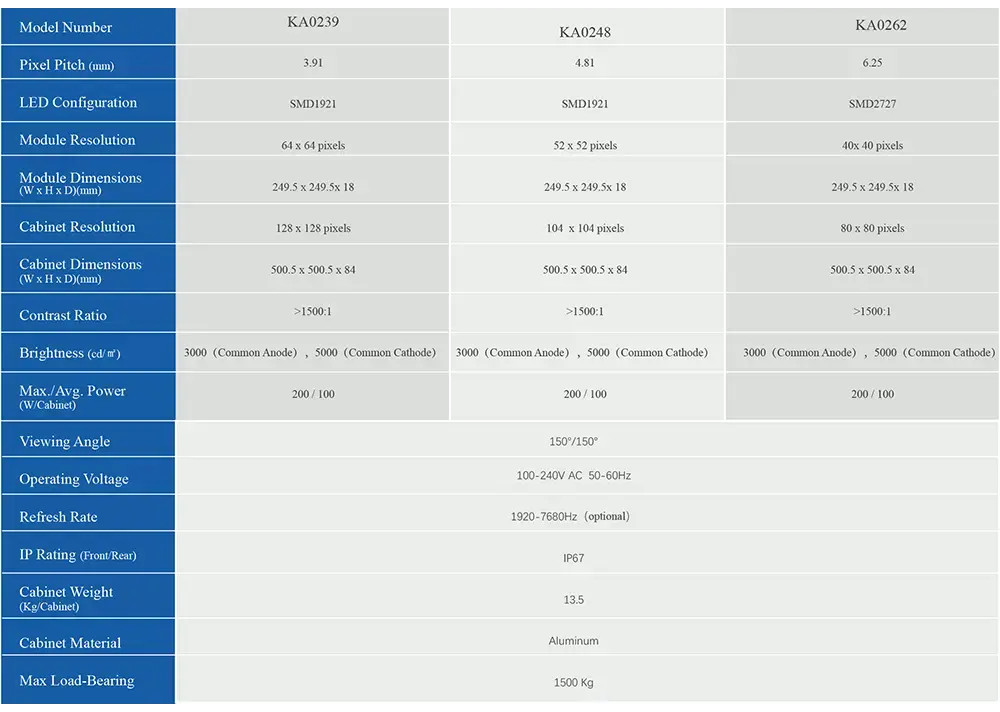

| Model Number | KA0239 | KA0248 | KA0262 |
| Pixel Pixel | 3.91mm | 4.81mm | 6.25mm |
| LED Configuration | SMD1921 | SMD1921 | SMD2727 |
| Pixel density (dot/m²) | 65,536 | 43,264 | 25,600 |
| Module Resolution | 64 x 64 Pixel | 52 x 52 Pixel | 40 x 40 Pixel |
| Module Dimensions (W x H x D)(mm) | 249.5 x 249.5x18 | 249.5 x 249.5 x 18 | 249.5 x 249.5x18 |
| Cabinet Dimensions (W x H x D)(mm) | 500.5 x 500.5 x 84 | 500.5 x 500.5 x 84 | 500.5 x 500.5 x 84 |
| Cabinet Resolution | 128 × 128 pixel | 104 × 104 pixle | 80 × 80 pixel |
| Contrast Ratio | >1500:1 |
||
| Brightness (cd/㎡) | 3000（Common Anode）,5000(Common Cathode) |
||
| Max./Avg. Power (W/Cabinet) | 200/100 |
||
| Operating Voltage | 100-240V/AC 50-60Hz |
||
| Viewing Angle | 150°/150° |
||
| Refresh Rate | 1920-7680Hz(Optional) |
||
| IP Rating (Front/Rear) | IP67 |
||
| Cabinet Weight (Kg/Cabinet) | 13.5 |
||
| Cabinet Material | Aluminum |
||
| Max Load-Bearing | 1500Kg |
||
