K-DOOH

Outdoor LED Display
For DOOH

Kingly specializes in outdoor displays, with pixel pitches starting from P1.9, and also offers outdoor LED advertising displays with larger pixel pitches, suitable for large-scale outdoor LED billboards such as billboards. Kingly is capable of producing outdoor LED digital signage in almost any length or height.

Black

Extraordinary deep blacks

Excellence

Capture every brilliance

IP Rating

IP67

Cool

Stay cool, enjoy more

Fast installation

Easy maintenance

Energy-saving

Energy-saving

Less consumption

EMC Class B Standard

Safe choice

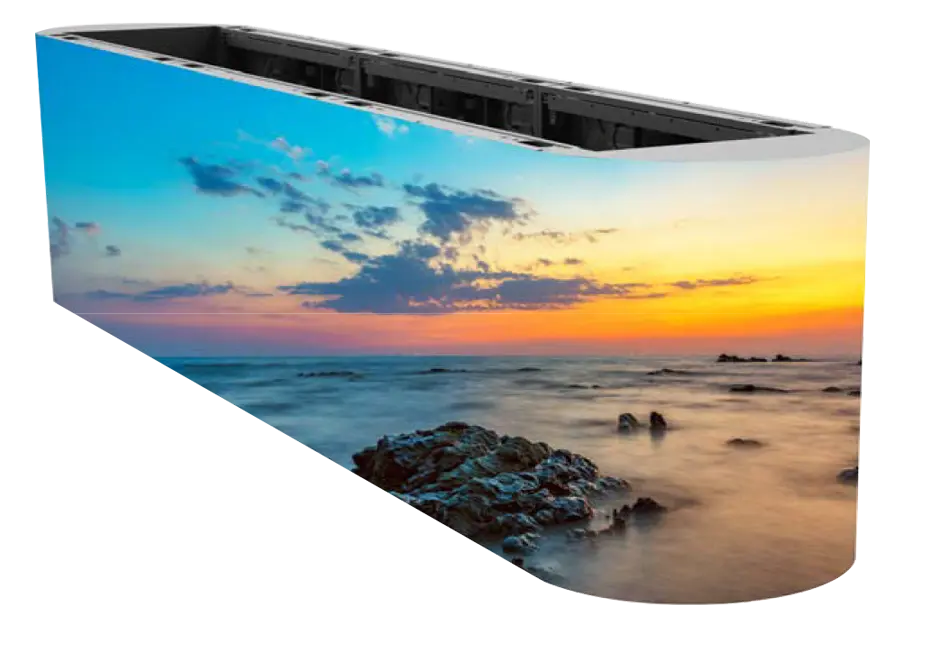

Creative Shapes

Convex and concave curved Splicing

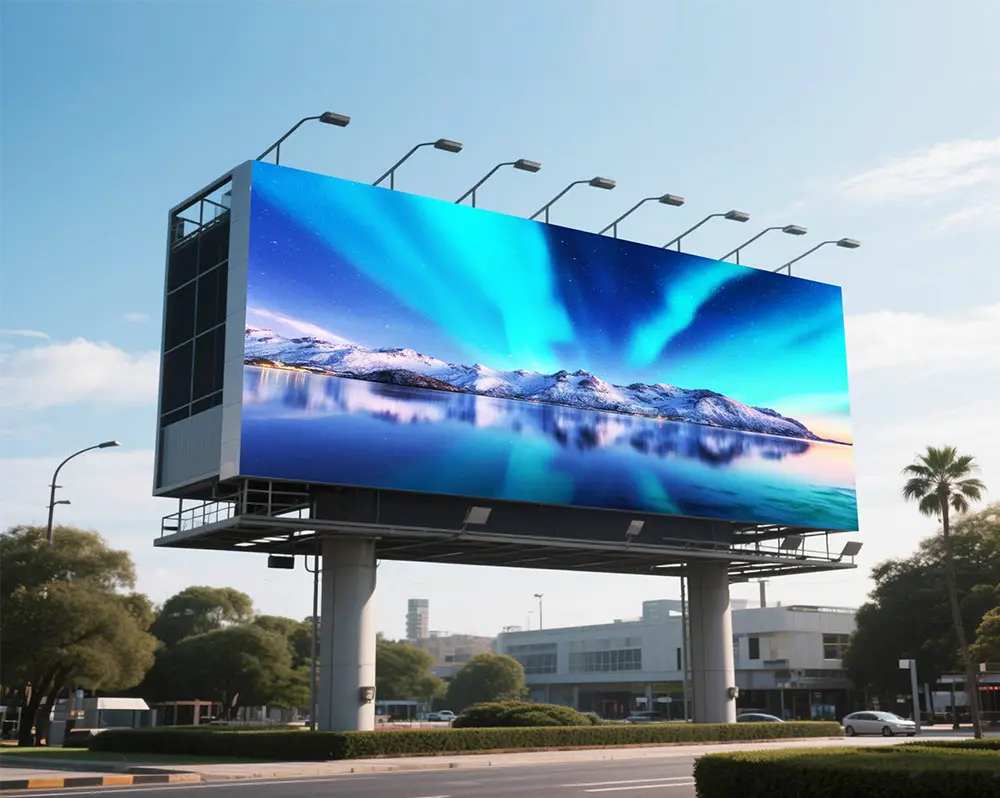

Available In Multiple Scenarios

Kingly's outdoor LED displays are specifically designed for locations including outdoor billboards, churches, restaurants, car dealerships, office buildings, bars, outdoor arenas and stadiums, indoor football fields, large transparent LED building canopies, cruise ships, theme parks, taxis, buses, professional and university training facilities, and long-haul trucks.

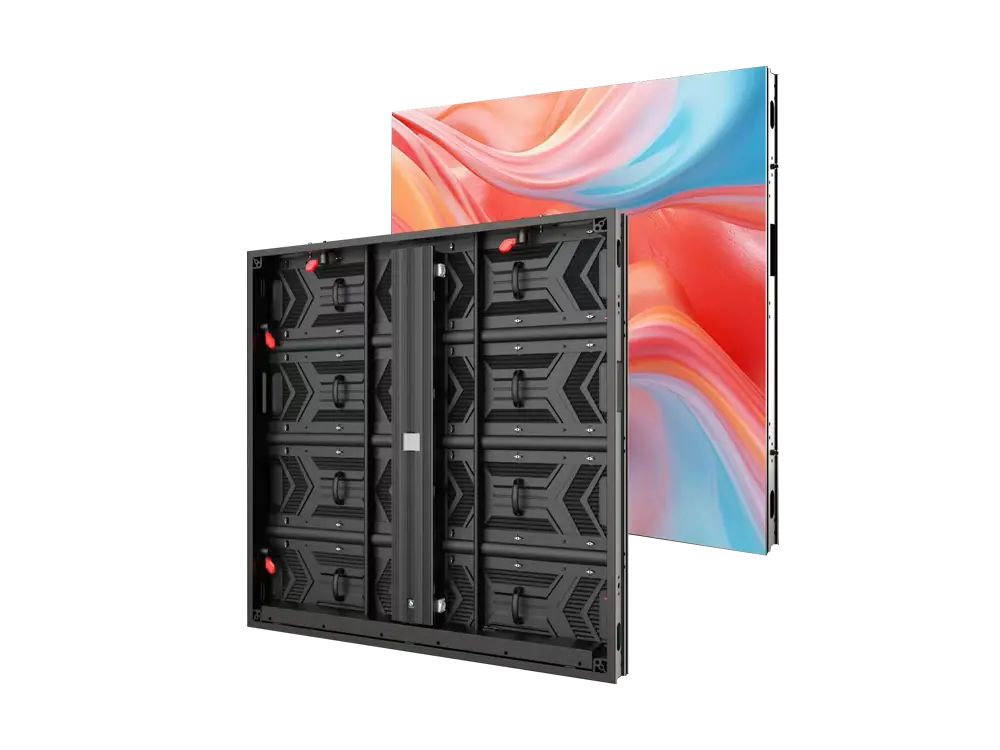

Cabinet Appearance

Exquisite appearance, standardized cabinet, excellent processing technology Greatly improving installation speed and display stability, making more convenient and safe maintenance

Ultra-high Definition Visual Enjoyment

High resolution, stable image display,every detail can be visible clearly, without trailing or flickering on the screen

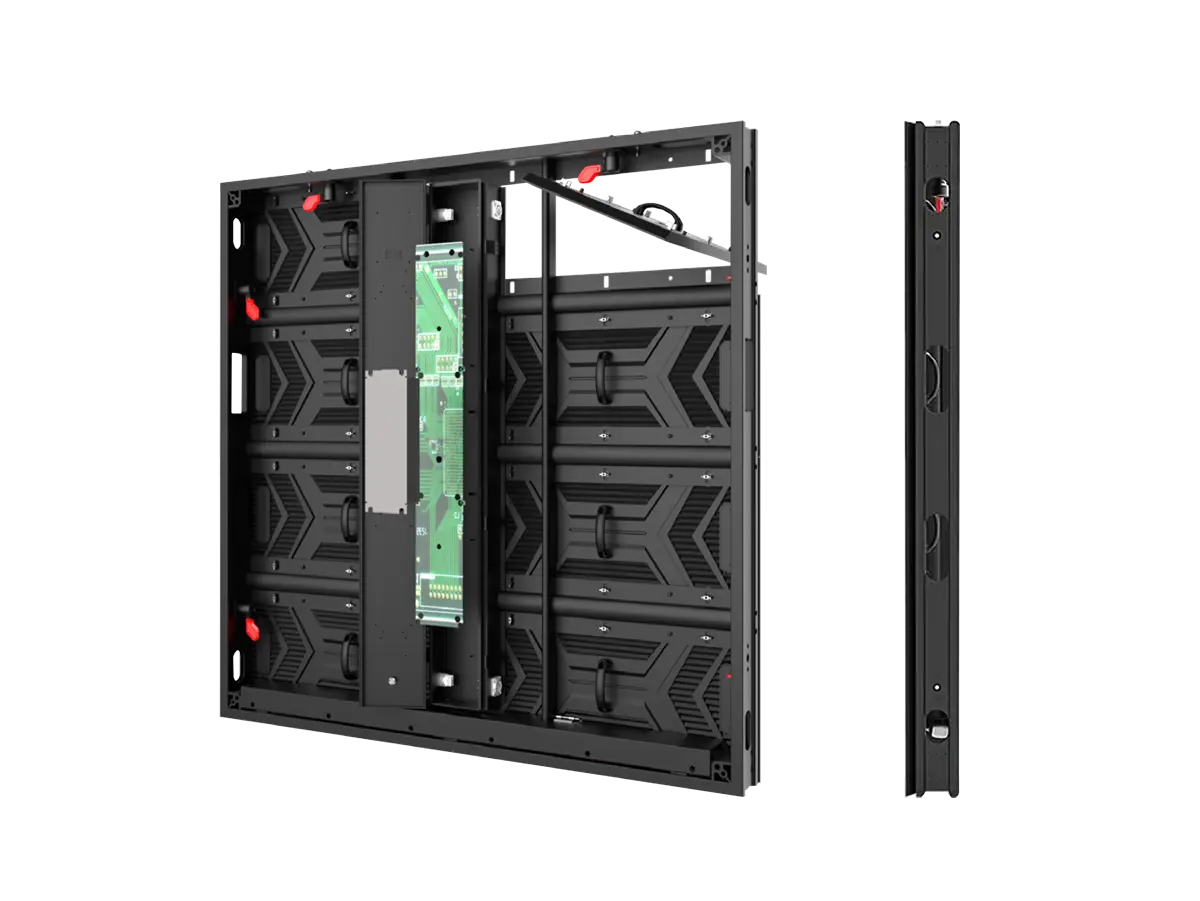

Support Front And Rear Dual Maintenance

Dual maintenance, easy to operate, quick installation and maintenance to truly save time and effort.

High quality LED beads

Using high brightness LED beads and low defect rate; Latest SMT technology, More stable product quality

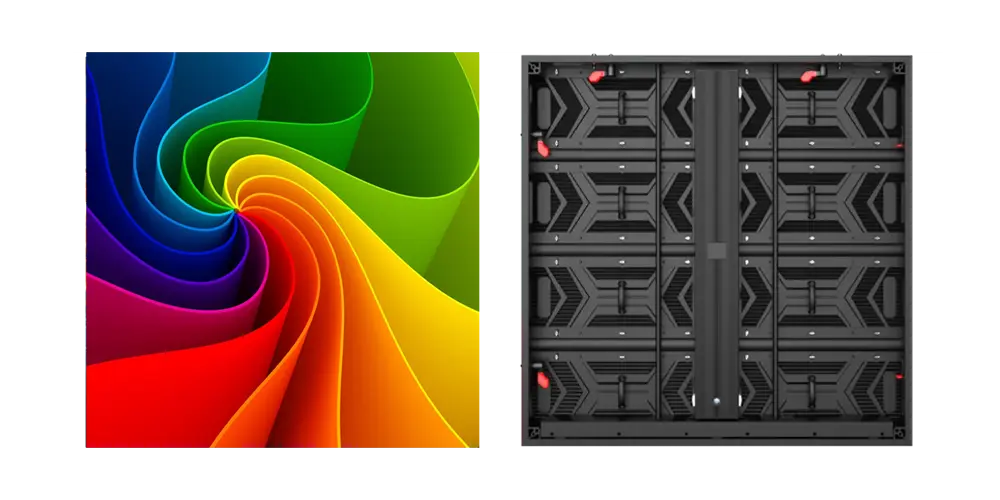

Seamless Splicin 4K High-definition

Kingly's outdoor LED displays can be used for outdoor bar signs, outdoor restaurant displays, exterior walls and roofs of ice hockey and basketball venues, exterior walls of convention centers, outdoor supermarket signs, exterior walls of airports, exterior walls of office buildings, and exterior walls of bus and railway stations.

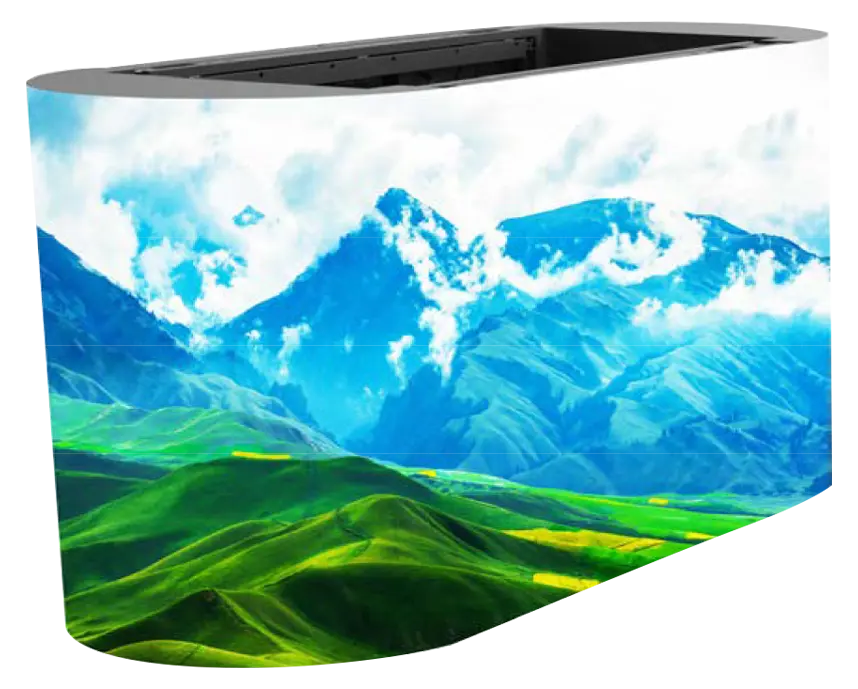

Customizable Any Splicing Cabinet

Supporting curved design, easy to assemble corner shapes.

K-DOOH SERIES PARAMETER TABLE

  Model No. KE029 KE039 KE048 KE062 KE078 KE010
  Pixel Pitch(mm) 2.97mm 3.91mm 4.81mm 6.25mm 7.81mm 10.42mm
  LED Configuration SMD1415 SMD1921 SMD1921 SMD2727 SMD2727 SMD2727
  Module Size(mm) 500x250mm 500x250mm 500x250mm 500x250mm 500x250mm 500x250mm
  Module resolution(pixels) 168x84 128x64 104x52 80x40 64x32 48x24
  Brightness(cd/m²) ≥4500 ≥4500 ≥4500 ≥6000 ≥6000 ≥6000
  Refresh rate ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz
  Gray rate 14bit 14bit 14bit 14bit 14bit 14bit
  Viewing angle(H/V) 140/140 140/140 140/140 140/140 140/140 140/140
  Scanning method 1/21s 1/16s 1/13s 1/5s 1/4s 1/2s
  Module weight
Alu module chassis 1400g Plastic module chassis
  Cabinet size（mm）
1000mm*1000mm*75mm
  Cabinet Weight
25kg
  IP Grade(front/bear)
IP65
  Max. Power Consumption(w)
Common cathode screen : Aver 550w/㎡ ; Regular screens: Aver 800w/㎡
  Avg. Power Consumption(w)
Common cathode screen : Aver 180w/㎡ ; Regular screens: Aver 320w/㎡
