K-Mesh

Flexible LED Display
K-MESH For DOOH

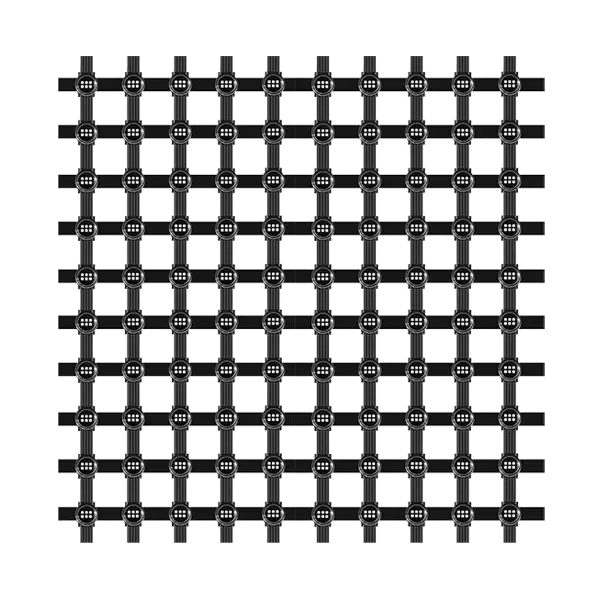

The K-Mesh series flexible LED grid screen has the characteristics of high transparency, softness, and lightness, making it easy to install and maintain. It is mainly suitable for outdoor buildings, large-scale installation, and can also be used for irregular and irregular shapes.

Number of LEDs
per point

There are four types of LED lights for each GE Series, 1 DOTS, 2 Dots, 4 Dots, 6 Dots,12 Dots

1 Dot
2 Dots

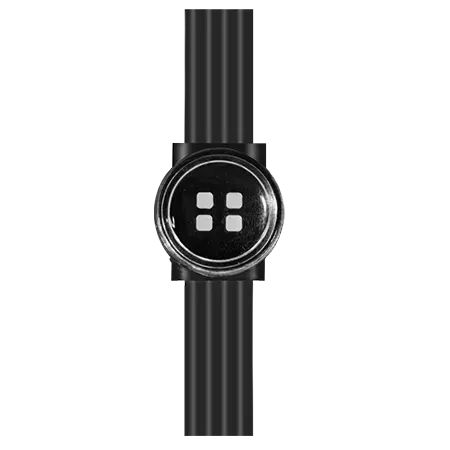

4 Dots

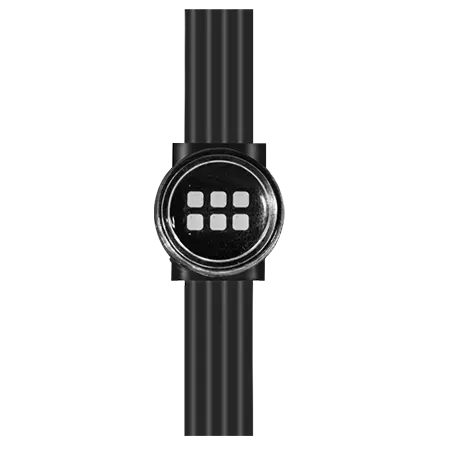

6 Dots

Higher Transparency

Up to 90% Transparency, Deliver a more transparent display, Extremely suitable for nightclub,bar and large-scaled entertainment venues.

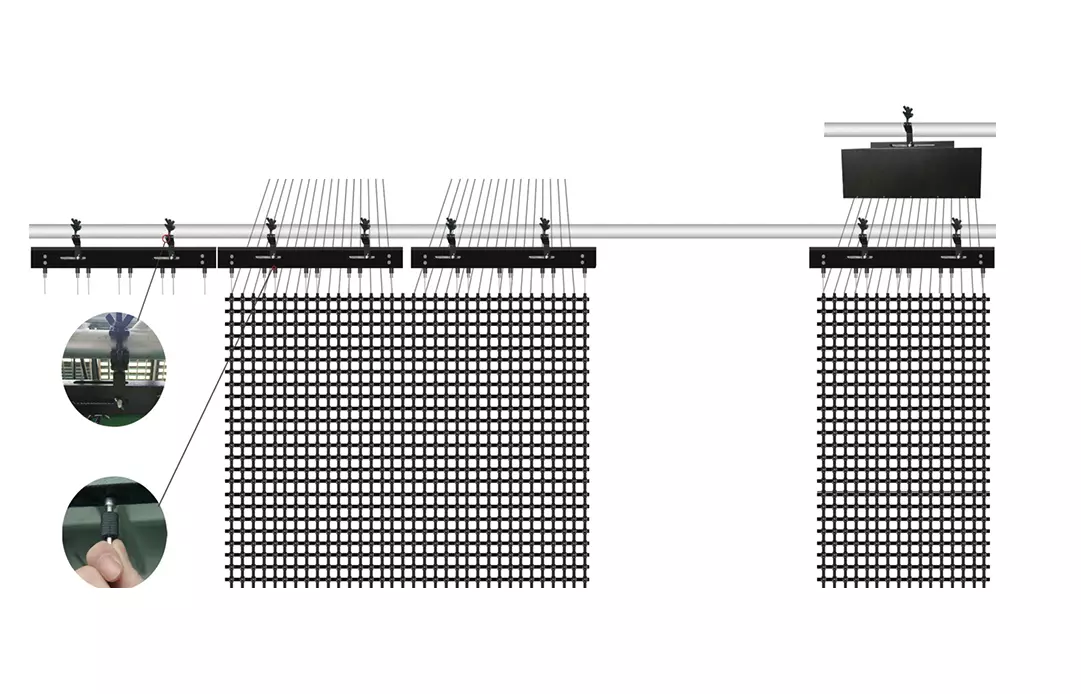

Flexible,easy and various installation

Bendable, shaped flexible led displays,perfect supporting coverage of various irregular structures can achieve more stable structure and quick installation and disassembly.

Waterproof

IP66 waterproof rating, UV resistant, low temperature resistant, fire resistant

Specifications

K-MESH-Series Specifcations
 Model K-Mesh 31.25 K-Mesh 55 K-Mesh 75
  Pixel Pitch 31.25 mm 55 mm 75 mm
  Pixel Density 1024dot/m² 330dot/m² 178dot/m²
  Brightness 6000CD/m² 1980CD/m² 500CD/m²
  Max. Module Size 0.25m*6.8m max. 0.44m*12m max. 0.4m*21.8m max.
  Max. Consumption 615W/m² 198W/m² 80W/m²
  Ave. Consumption 205W/m² 66W/m² 27W/m²
  Module Resolution 8dots*218dots max 8dots*218dots max 8dots*290dots max
  Unit Consumption 0.45W 0.6W 0.45W
  LED Type RGB3in1
SMD3535		 RGB3in1
SMD3535

RGB3in1
SMD3535
  IP Rating
IP66
 Operating Life
≥100,000hours
 Certificate
CE, ROHS, FCC

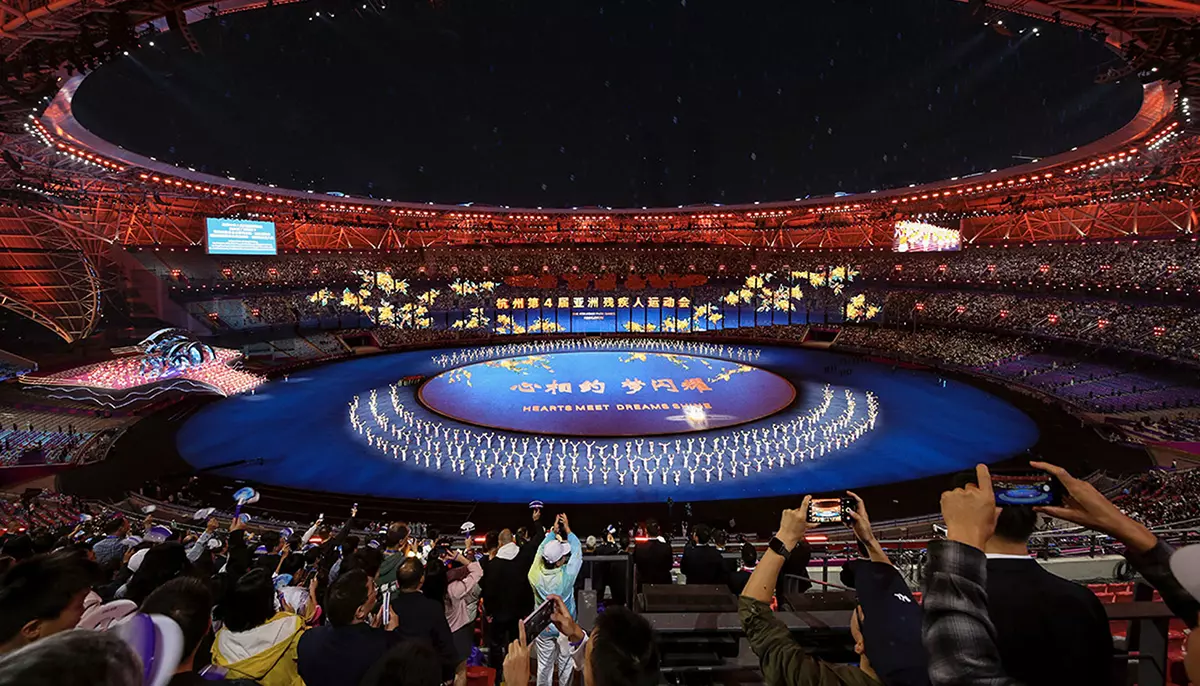

Application Cases
